Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to prevent hand injuries.

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

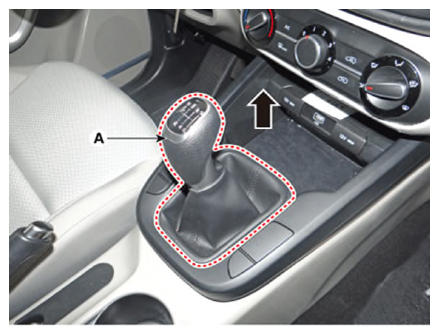

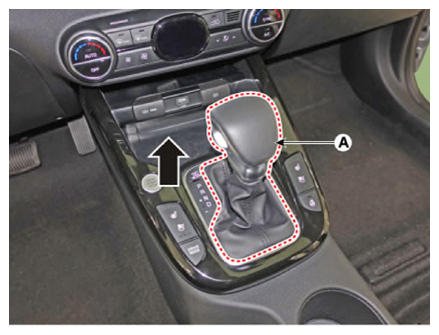

Remove the gear knob & boots (A) by pulling it upwards.
[MT]

Courtesy of KIA MOTORS AMERICA, INC.

[AT]

Courtesy of KIA MOTORS AMERICA, INC.

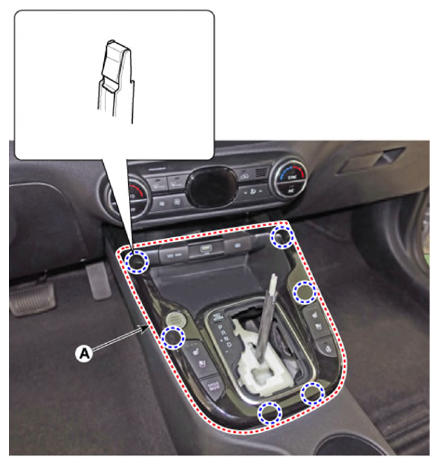

Using a screwdriver or remover, remove the console upper cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

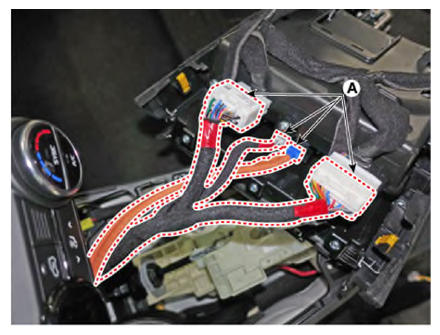

Disconnect the connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

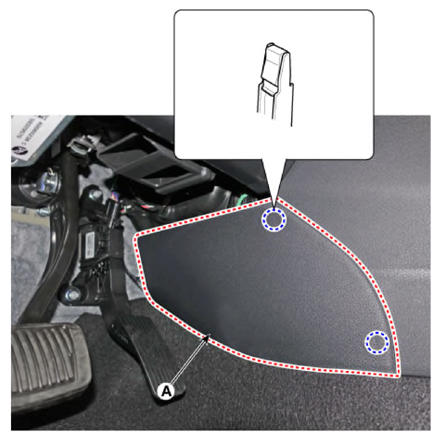

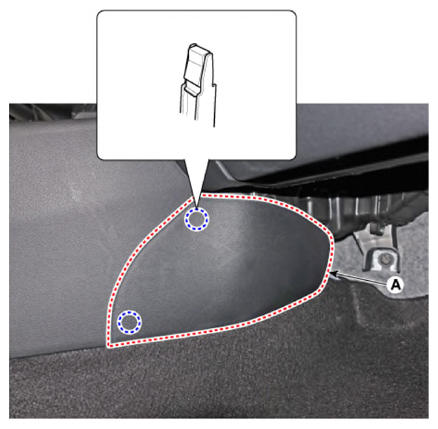

Using a screwdriver or remover, remove the console side cover (A).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

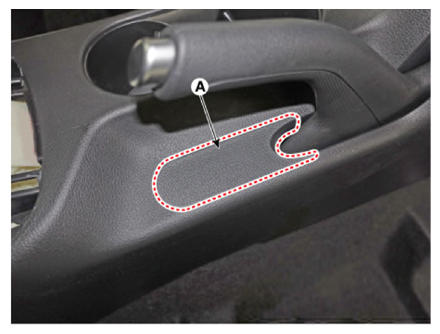

Remove the parking brake cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

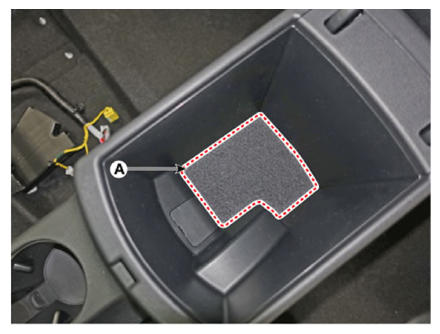

Remove the storage box pad (A).

Courtesy of KIA MOTORS AMERICA, INC.

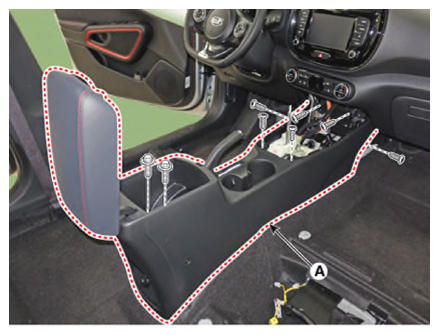

After loosening the mounting screws and bolts, remove the floor console assembly (A).
Tightening torque:

6.9 - 9.8 N.m (0.7 - 1.0 Kgf.m, 5.1 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin-type retainers).
