Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
    NOTE: After disconnecting the cables, wait at least 30 seconds.

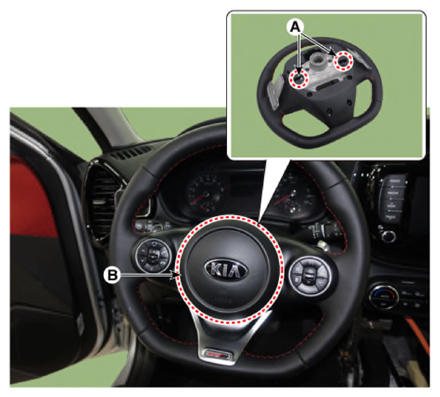

  2. While turning the steering wheel to left and right, press the parts marked A (2 red dotted circles) under the steering wheel and then remove the airbag module (B).
    G13281617Courtesy of KIA MOTORS AMERICA, INC.

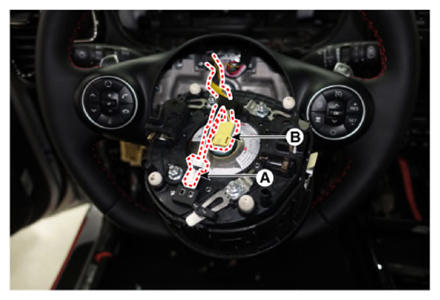

  3. Disconnect the horn connector (A) and airbag module connector (B).
    G13281618Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
