Repair Procedures: Removal
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative (-) terminal.
- Remove the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

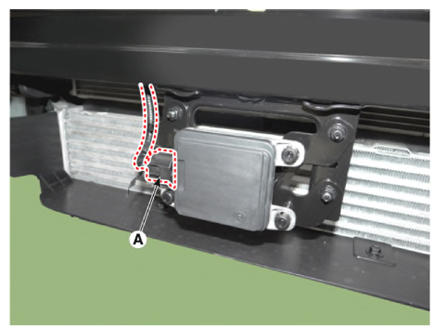

- Disconnect the front radar connector (A).

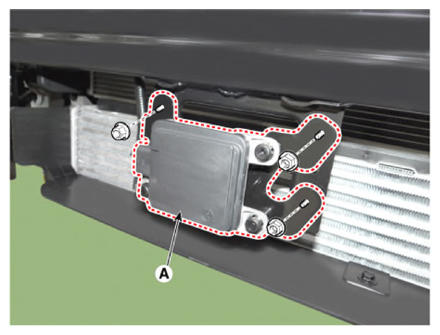

- Remove the front radar unit (A) by loosening the nuts.
Tightening torque:
3.9 - 4.3 N.m (0.40 - 0.44 kgf.m, 2.9 - 3.2 lb.ft, 34.5 - 38.1 lb.in)
