Repair Procedures: Replacement

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

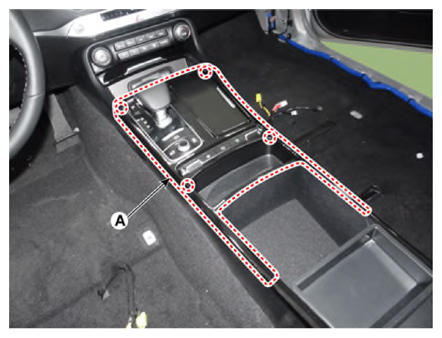

  2. Using the remover, remove the console upper cover (A).
    G12795831Courtesy of KIA MOTORS AMERICA, INC.

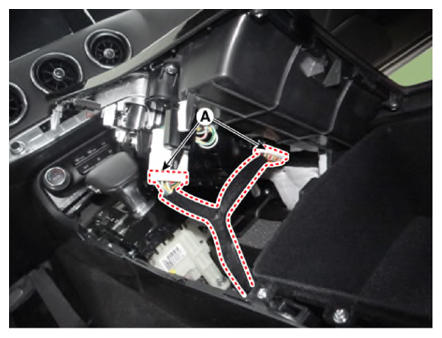

  3. Disconnect the connector (A) from the console upper complete.
    G12795832Courtesy of KIA MOTORS AMERICA, INC.

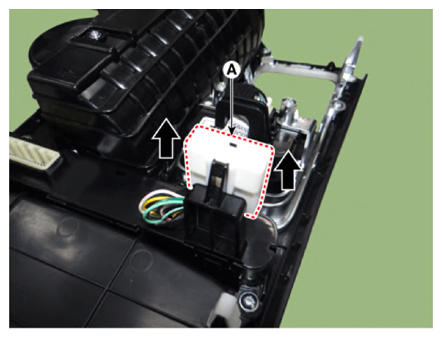

  4. Disconnect the connector (A) from the upper console.
    G12795833Courtesy of KIA MOTORS AMERICA, INC.

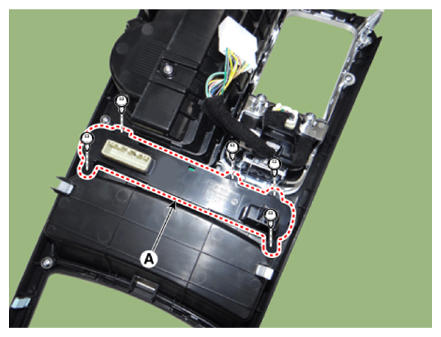

  5. Loosen the screw and then remove the console floor switch complete (A).
    G12795834Courtesy of KIA MOTORS AMERICA, INC.

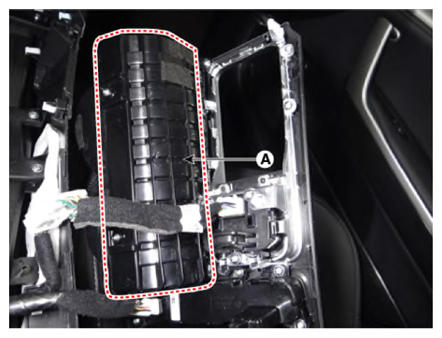

  6. Remove the cup holder (A).
    G12795835Courtesy of KIA MOTORS AMERICA, INC.

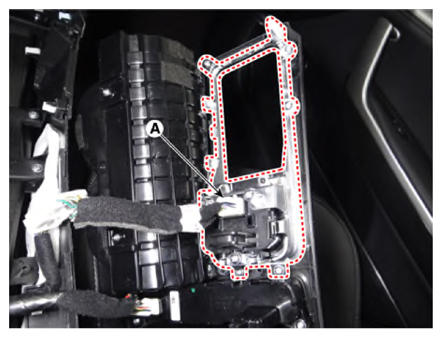

  7. Loosen the screw and then remove the ESC switch (A).
    G12795836Courtesy of KIA MOTORS AMERICA, INC.

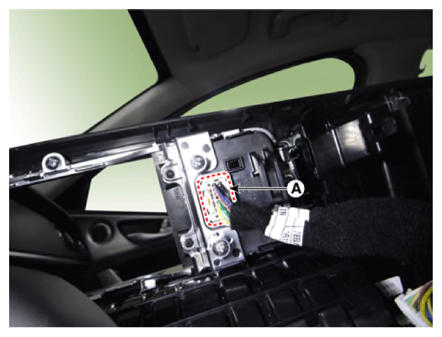

  8. Disconnect the ESC connector (A) from the upper console.
    G12795837Courtesy of KIA MOTORS AMERICA, INC.

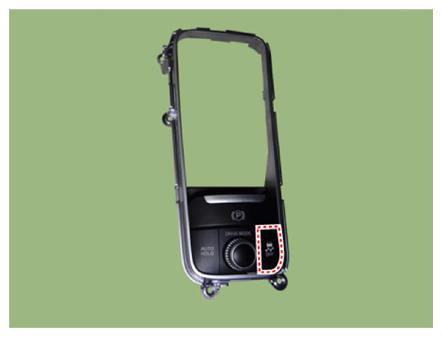

    G12795838Courtesy of KIA MOTORS AMERICA, INC.
  9. Install in the reverse order of removal.
