Components And Components Location: Components

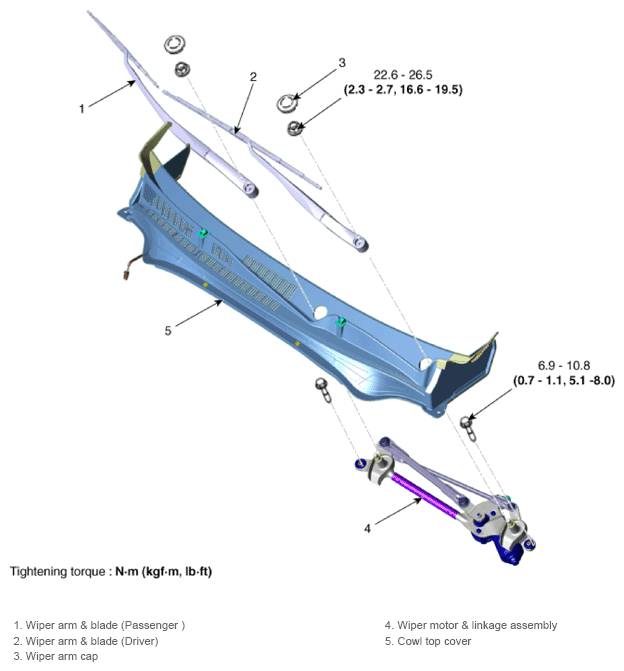

Fig 1: Front Wiper Motor Components With Torque Specification
G13306340Courtesy of KIA MOTORS AMERICA, INC.

Tightening torque: N.m (kgf.m. lb.ft)
