General Information: Replacement

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Standard values, such as torques and certain adjustments, must be strictly observed in the reassembly of all parts.

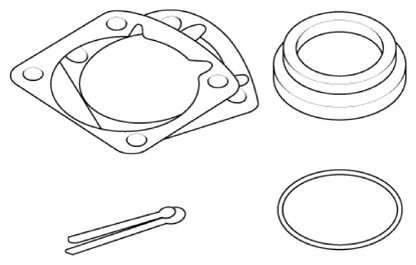

Once removed, replace the following parts with new ones.

  1. Oil seals
  2. Gaskets
  3. O-rings
  4. Lock washers
  5. Cotter pins (split pins)
  6. Plastic nuts
    G14560069Courtesy of KIA MOTORS AMERICA, INC.

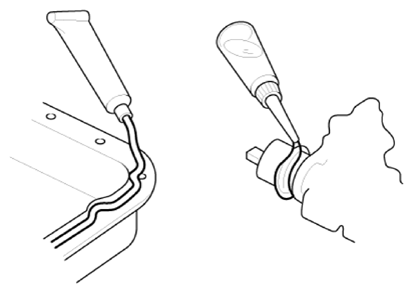

  7. Apply sealant to gaskets.
  8. Apply oil to moving components of parts.
  9. Apply specified oil or grease to the prescribed locations (oil seals, etc.) before assembly.
    G14560070Courtesy of KIA MOTORS AMERICA, INC.
