Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door module.
(Refer to Front Door - "FRONT DOOR MODULE ")

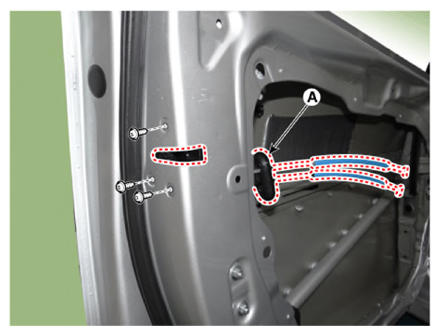

Disconnect the front door latch load (A).

Courtesy of KIA MOTORS AMERICA, INC.

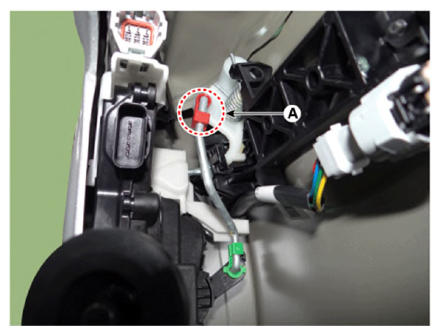

After loosening the mounting screws, remove the front door latch (A)

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.

Information

Make sure the connector is connected properly.
Make sure the door locks/unlocks and opens/closes properly.
Replace any damaged clips (or pin - type retainers).
