Occupant Detection System (ODS) Unit

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative terminal.
    NOTE: After disconnecting the cables, wait at least 30 seconds.
  2. Remove the passenger seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

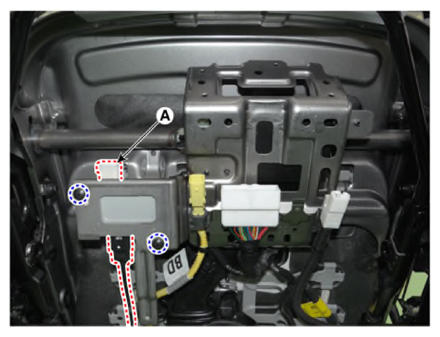

  3. Disconnect the connector (A) and loosen the screws.
    G14561826Courtesy of KIA MOTORS AMERICA, INC.

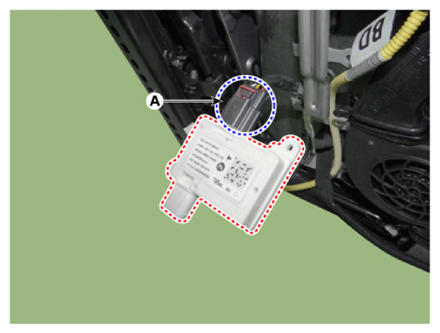

  4. Disconnect the connector (A).
    G14561827Courtesy of KIA MOTORS AMERICA, INC.
