Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal.
NOTE: After disconnecting the cables, wait at least 30 seconds.
Remove the floor console.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

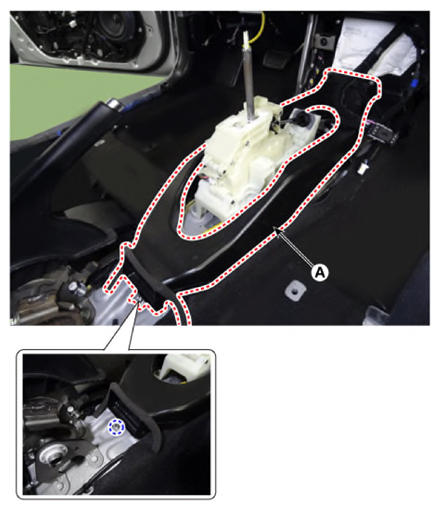

Remove the rear air vent duct (A) after loosening the nut.

Courtesy of KIA MOTORS AMERICA, INC.

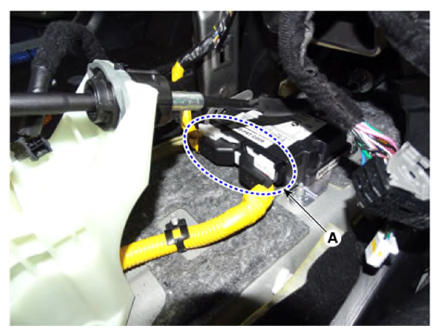

Disconnect the Supplemental Restraint System Control Module (SRSCM) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

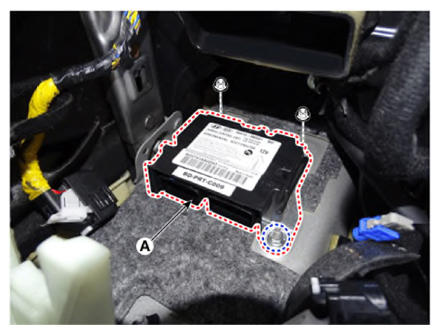

Loosen the nuts and then remove the Supplemental Restraint System Control Module (A).
Tightening torque:

6.96 - 7.25 N°m (0.71 - 0.74 kgf°m, 5.13 - 5.35 lb°ft)

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Switch "OFF" the ignition when removing or installing SRSCM or other SRS components to avoid accidental airbag deployment.

NOTE: Be careful not to damage the SRSCM connector.
