Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 8

Vehicle S/W Management

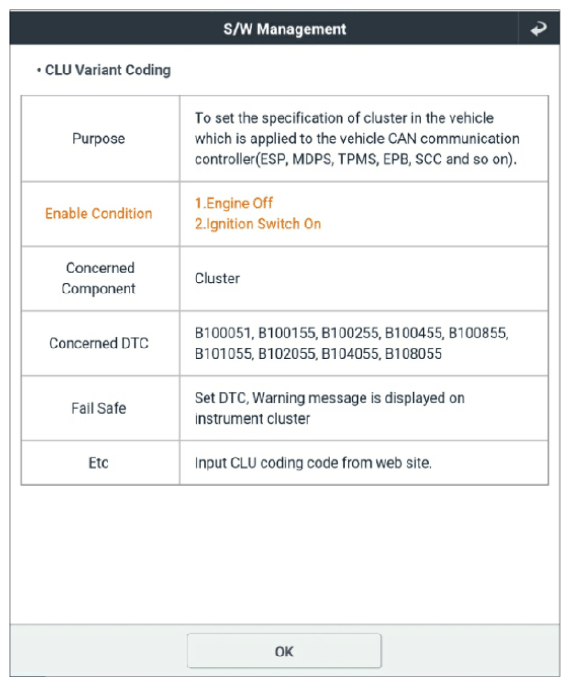

G14565510Courtesy of KIA MOTORS AMERICA, INC.

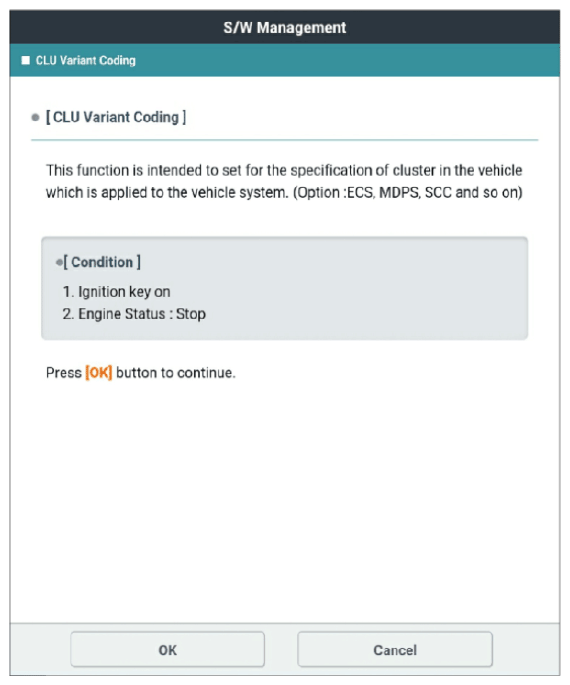

G14565511Courtesy of KIA MOTORS AMERICA, INC.

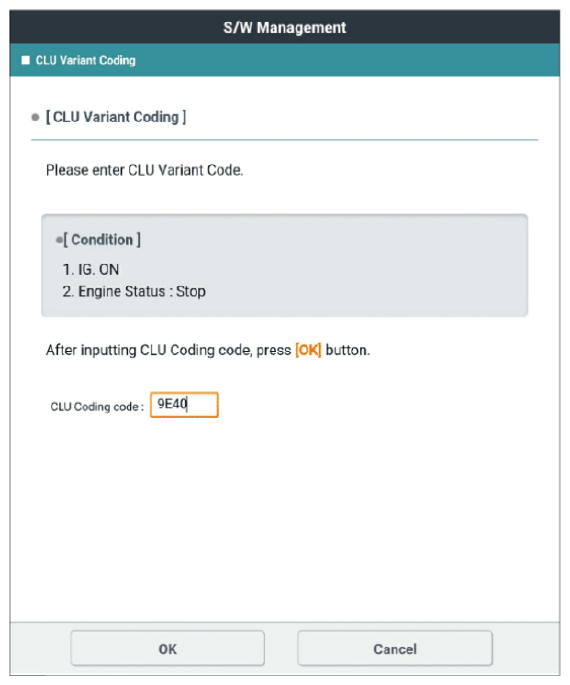

G14565512Courtesy of KIA MOTORS AMERICA, INC.

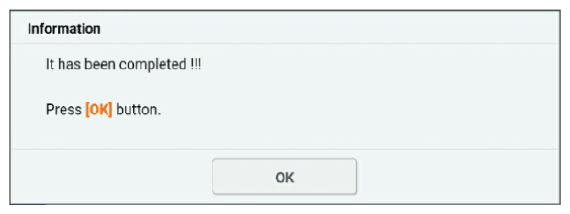

G14565513Courtesy of KIA MOTORS AMERICA, INC.

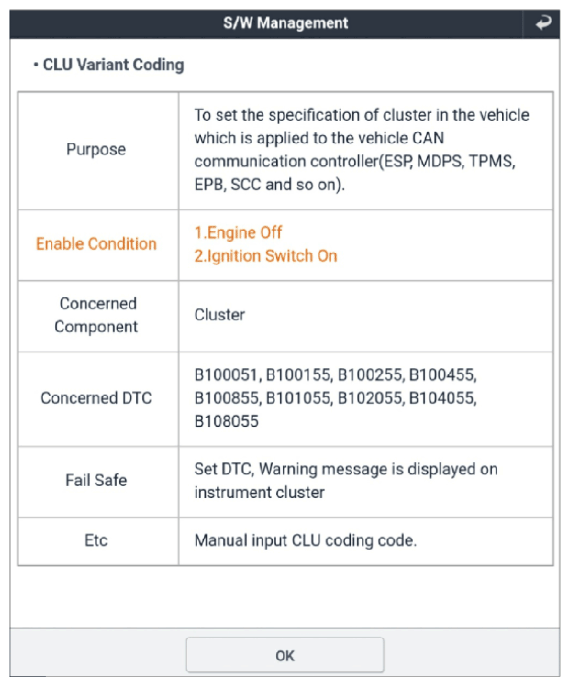

G14565514Courtesy of KIA MOTORS AMERICA, INC.

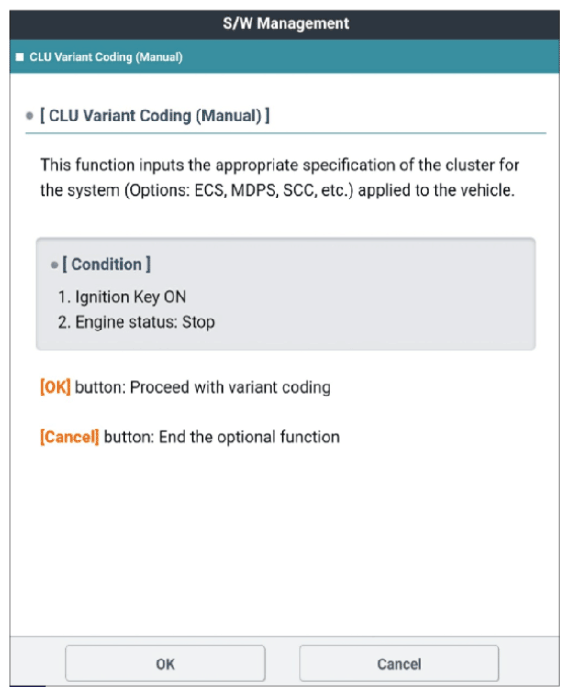

G14565515Courtesy of KIA MOTORS AMERICA, INC.

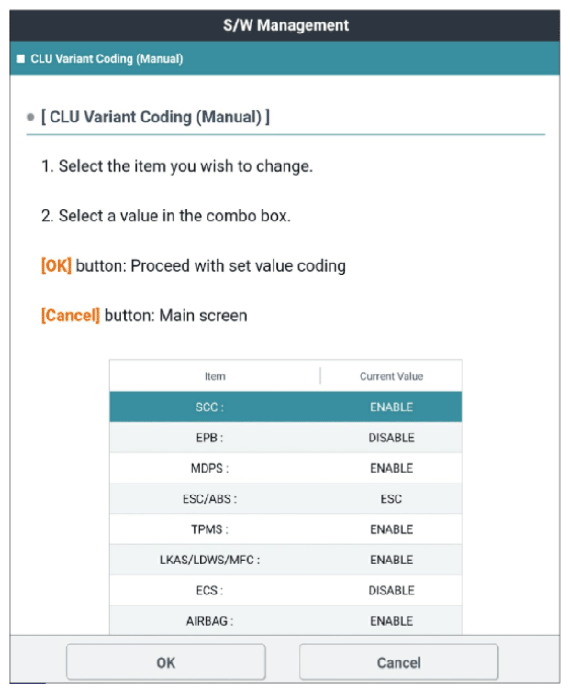

G14565516Courtesy of KIA MOTORS AMERICA, INC.

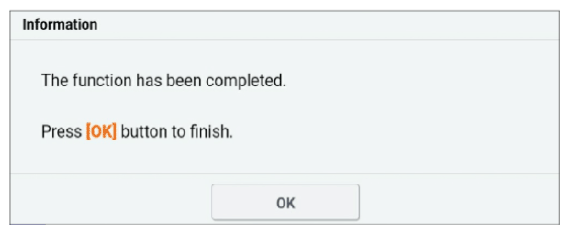

G14565517Courtesy of KIA MOTORS AMERICA, INC.
