Repair Procedures: Installation

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When assembling, be careful not to let dust and foreign substances enter.
Driveshaft joints require special grease, so do not add any other type of grease.
Boot bands must use the new one.

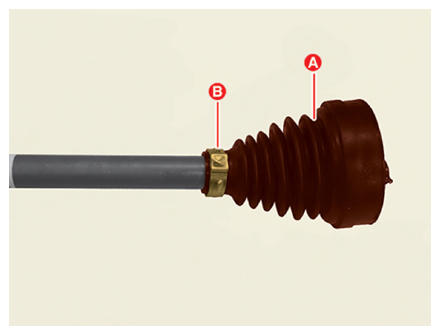

Install the transaxle side boot (A) and boot band (B) on the driveshaft.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Put the boot band (B) first on the drive shaft before installing the boot (A).

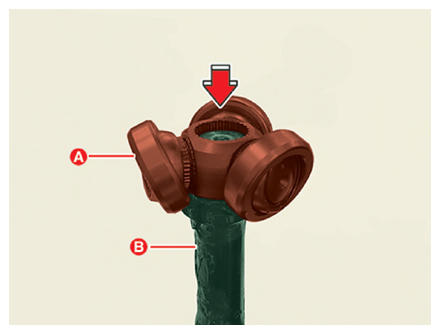

Install the spider assembly (A) on the shaft (B), then press it using a mallet.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:

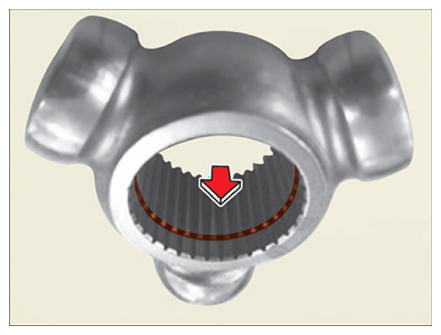

- When installing the spider assembly (A), install it in the correct direction.
- Installing in the wrong direction can cause secondary quality problems.

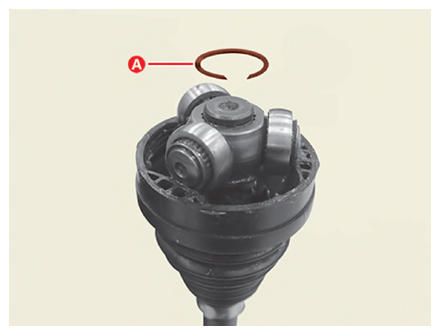

Install the snap ring (A) using the snap ring pliers.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

When replacing the joint assembly, use the new one provided in the joint kit.
The snap ring must be new.

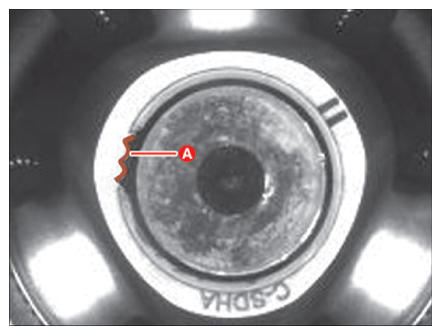

After installing the snap ring, make sure that there are only 2 - 3 splines in position (A).

Courtesy of KIA MOTORS AMERICA, INC.

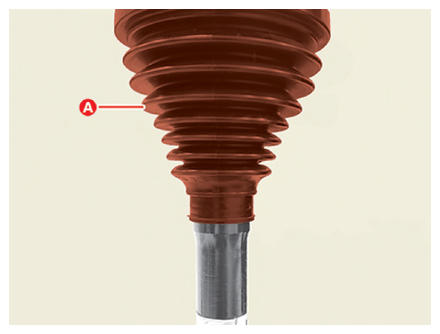

Install the transaxle side joint boot (A) in the correct position.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

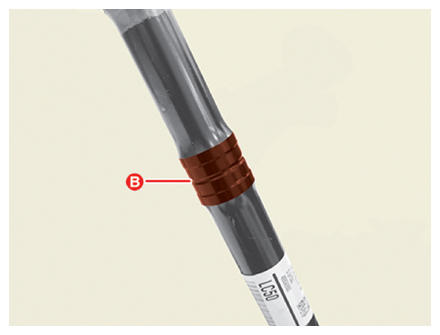

When installing boot (A), make sure the boot fits into the groove (B).

Courtesy of KIA MOTORS AMERICA, INC.

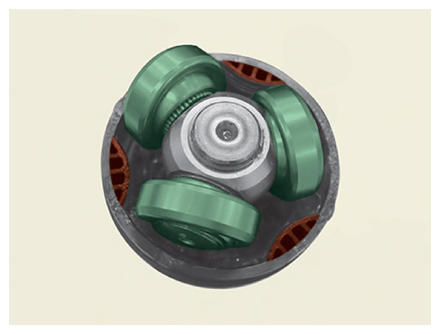

When installing the spider assembly, fit the assembly to the boot shape.

Courtesy of KIA MOTORS AMERICA, INC.

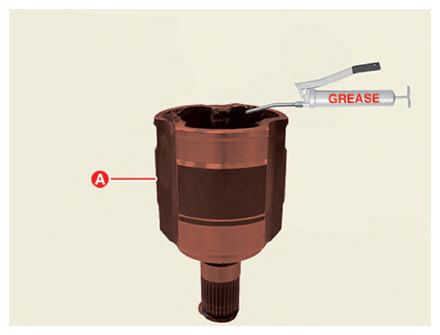

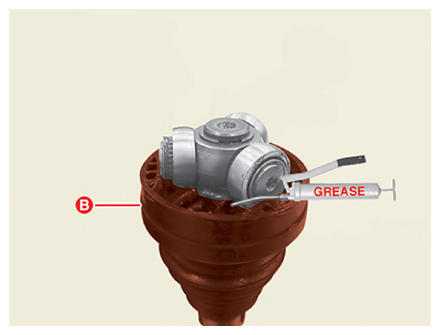

Apply specified grease inside the joint housing (A) and boot (B).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Use the grease provided with the joint/boot kit.
- Apply about 70% grease to the housing (A) and about 30% grease to the boot (B).
- Driveshaft joints require special grease, so do not add any other type of grease.

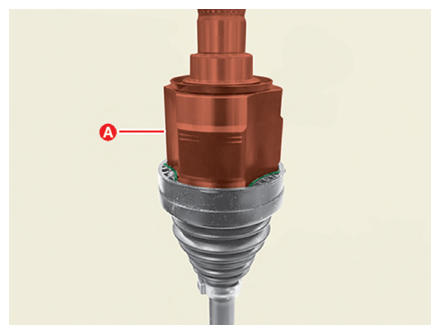

Install the trans axle side joint housing (A).

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- When installing the housing, turn the boot to fit each other.
- If the shape of housing and boot does not fit, there is a possibility of leakage due to the gap. Be very careful.

Adjust the air inside the boot to normal as shown in the illustration below.

Normal	Lack of air	Too much air
Courtesy of KIA MOTORS AMERICA, INC.	Courtesy of KIA MOTORS AMERICA, INC.	Courtesy of KIA MOTORS AMERICA, INC.

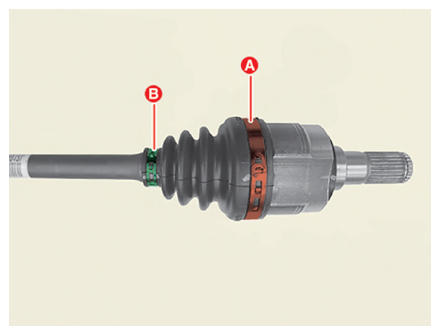

Install the transaxle side joint large diameter (A) and small diameter (B) boot band.

Courtesy of KIA MOTORS AMERICA, INC.

Information

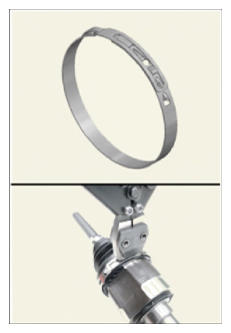

Use the right tool for each type of boot band as shown in the table below.

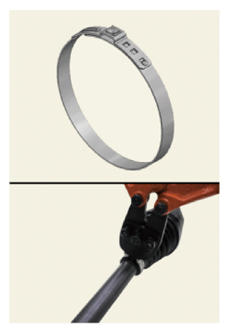

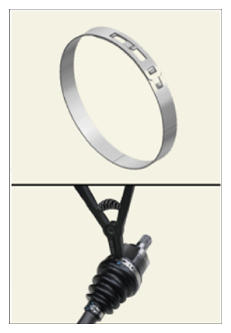

Ear type	Hook type	Hook type [Low profile]
SST (0K495-C5000)	SST (09495-39100)	SST (0K495-2W000)
Courtesy of KIA MOTORS AMERICA, INC.	Courtesy of KIA MOTORS AMERICA, INC.	Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Install in the following order: large diameter boot band (A) → small diameter boot band (B).
Installing in the wrong order can cause leaks.

When installing the boot band, align the fastened direction with the wheel side joint boot band.

Courtesy of KIA MOTORS AMERICA, INC.

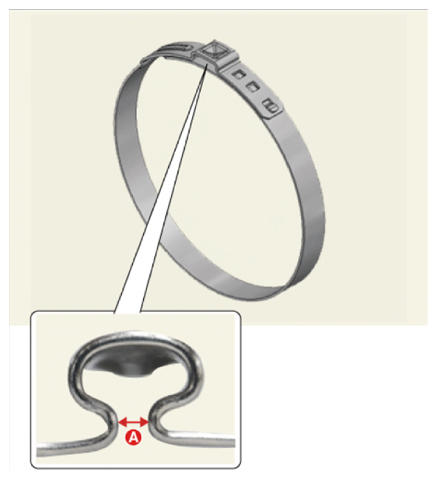

When installing the ear type boot band, check the clearance (A) as shown in the illustration below.

Clearance (A): 2.0 mm or less.

Courtesy of KIA MOTORS AMERICA, INC.

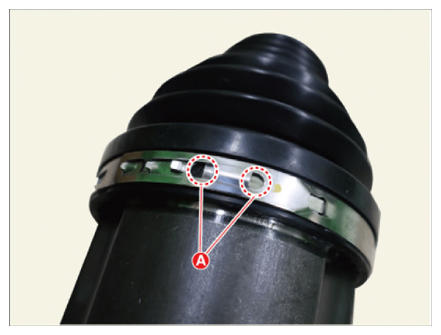

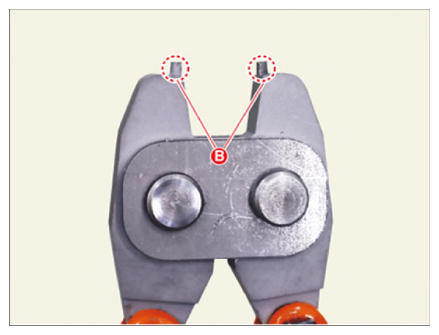

When using the low profile hook type boot band, fit the SST tip (B) into the boot band hole (A) as shown in the illustration below.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Install the front drive shaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
