Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.
- Install using the procedure as follows.
- How to install the ignition lock & clutch switch

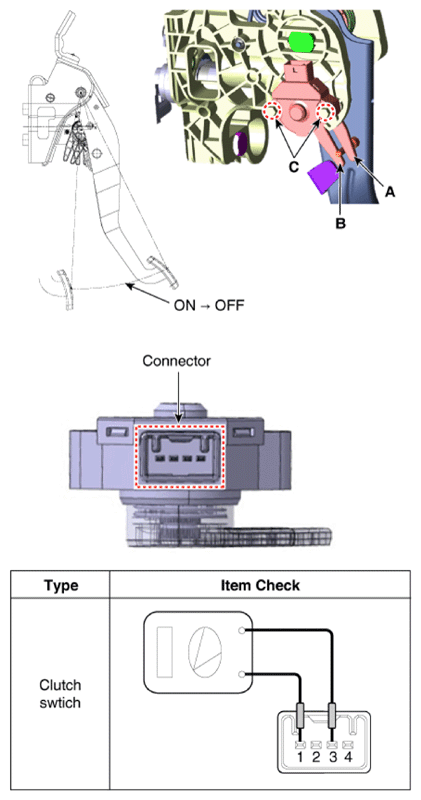

- After inserting the switch lever (A) into the clutch pedal pin (B), pre-tighten the switch mounting bolt (C).
- Set the clutch switches so as to confirm that the electric current is applied to the pins (1) and (3).
- Fix the clutch pedal to the ignition lock switch ON→OFF strokes (D).
- With the pedal fixed, rotate the switch clockwise and counter-clockwise to set it to a position at the transition from ON to OFF. Then, tighten the mounting bolt (C) to the specified torque.
- Once completing the assembly, check again that the switch is correctly operating.
ON → OFF Position (D)
75.8 ± 3 mm (2.9842 ± 0.1181 in.)
Tightening torque:
2.0 - 5.9 N.m (0.2 - 0.6 kgf.m, 1.4 - 4.3 lb.ft)
- How to install the ignition lock & clutch switch
