Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 8
G13301909Courtesy of KIA MOTORS AMERICA, INC.
G13301910Courtesy of KIA MOTORS AMERICA, INC.

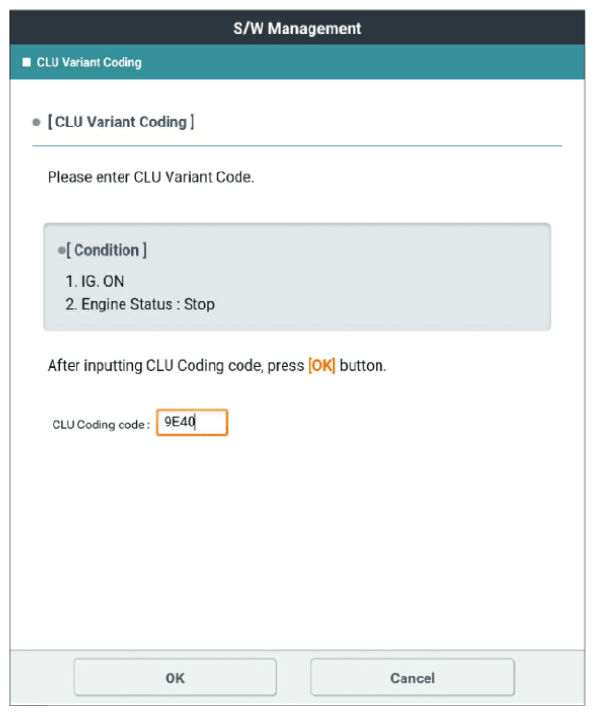

G13301911Courtesy of KIA MOTORS AMERICA, INC.

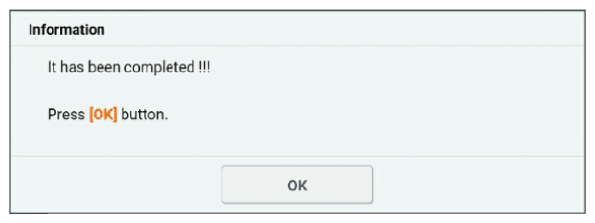

G13301912Courtesy of KIA MOTORS AMERICA, INC.

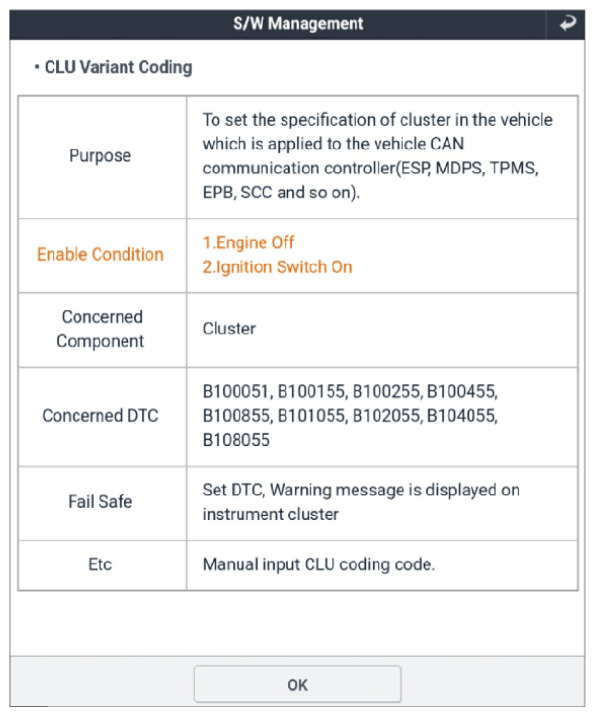

G13301913Courtesy of KIA MOTORS AMERICA, INC.

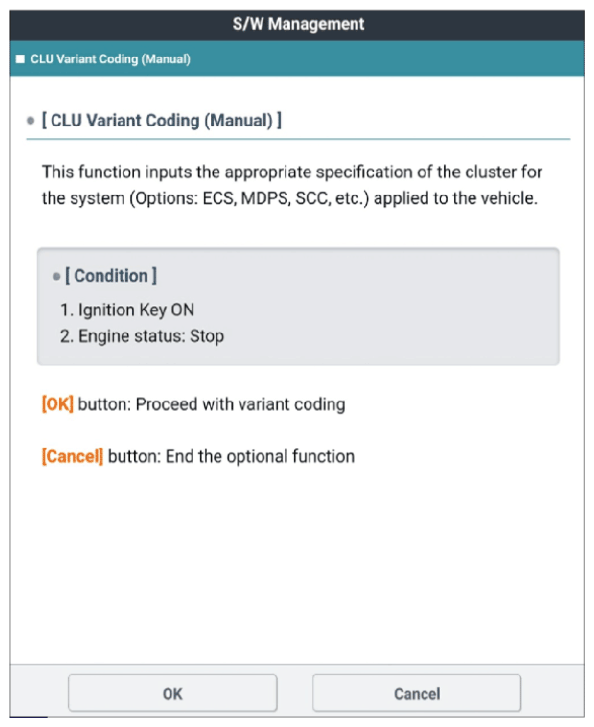

G13301914Courtesy of KIA MOTORS AMERICA, INC.

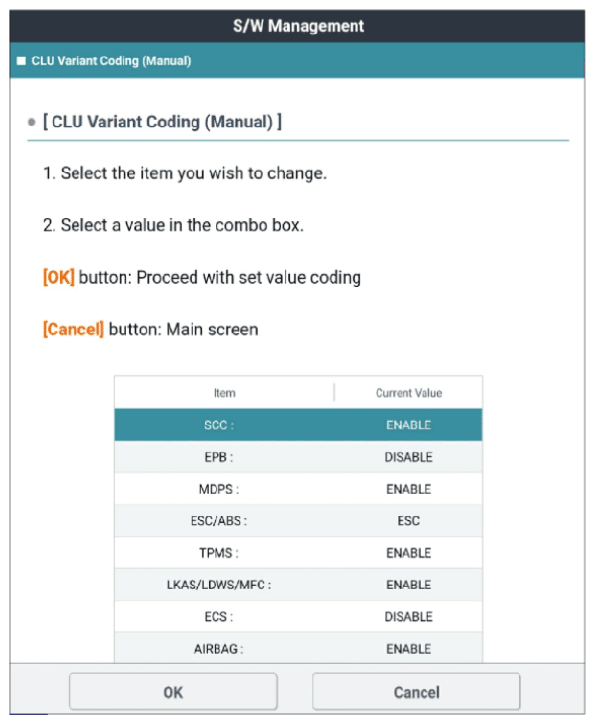

G13301915Courtesy of KIA MOTORS AMERICA, INC.

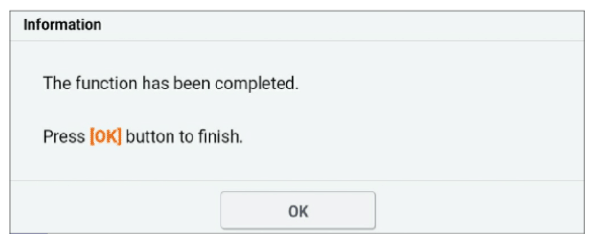

G13301916Courtesy of KIA MOTORS AMERICA, INC.
