Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 8
G13302049Courtesy of KIA MOTORS AMERICA, INC.
G13302050Courtesy of KIA MOTORS AMERICA, INC.

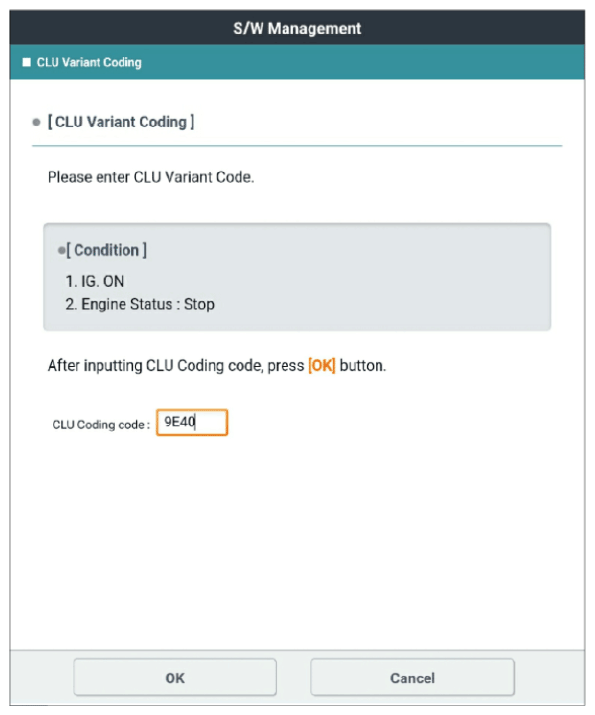

G13302051Courtesy of KIA MOTORS AMERICA, INC.

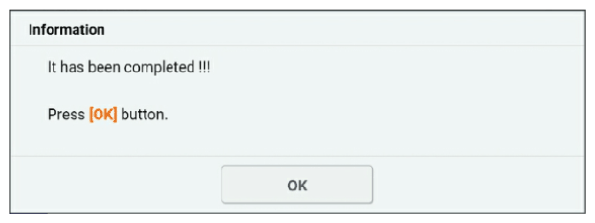

G13302052Courtesy of KIA MOTORS AMERICA, INC.

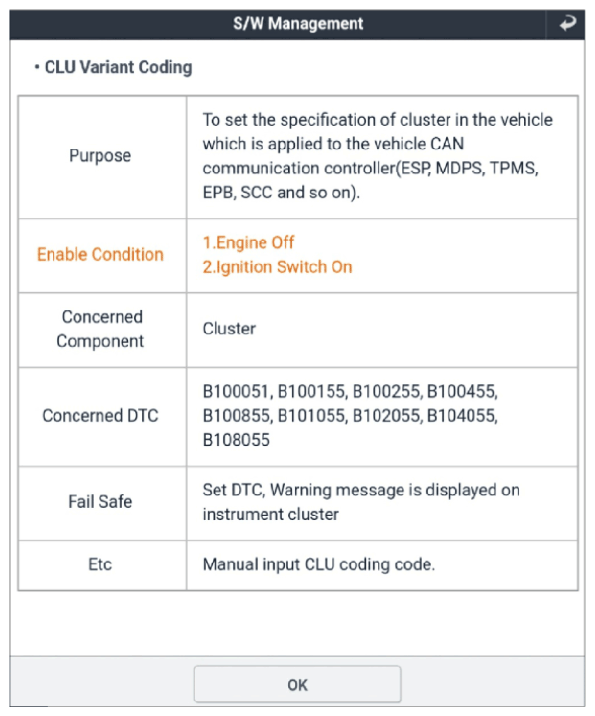

G13302053Courtesy of KIA MOTORS AMERICA, INC.

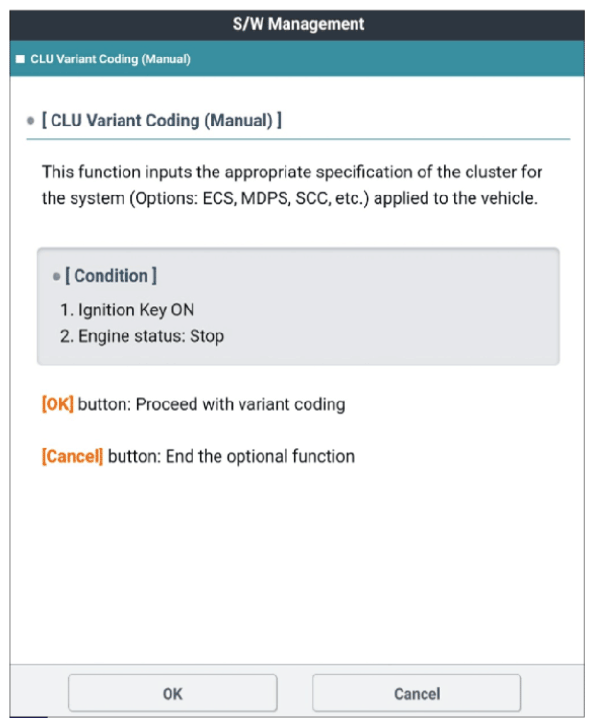

G13302054Courtesy of KIA MOTORS AMERICA, INC.

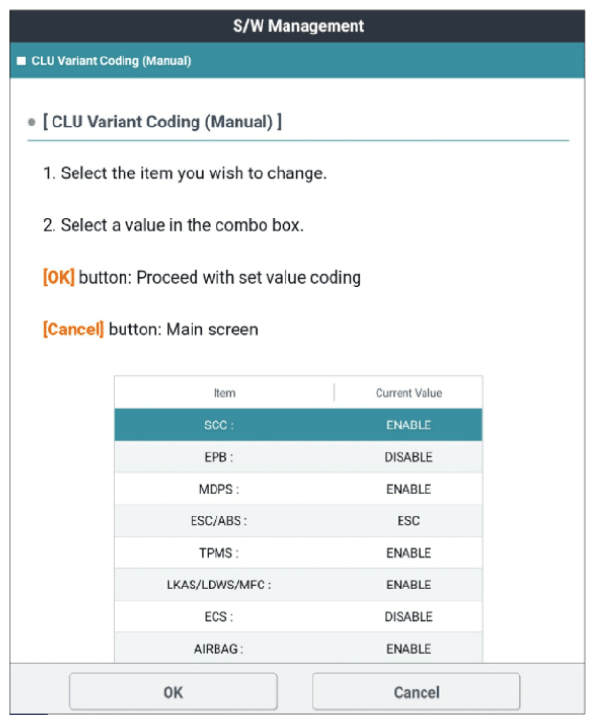

G13302055Courtesy of KIA MOTORS AMERICA, INC.

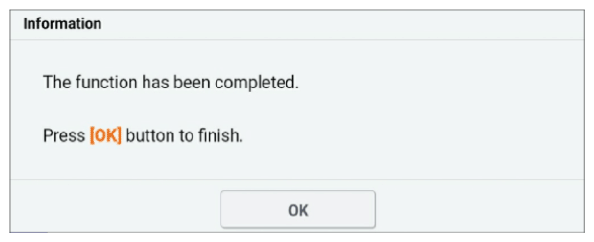

G13302056Courtesy of KIA MOTORS AMERICA, INC.
