Vehicle S/W Management: Notes

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON" and engine "OFF".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 4

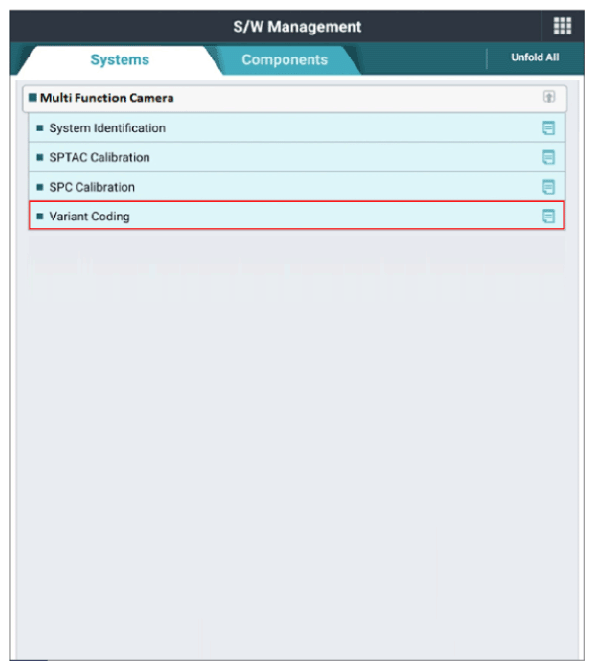

G13294439Courtesy of KIA MOTORS AMERICA, INC.

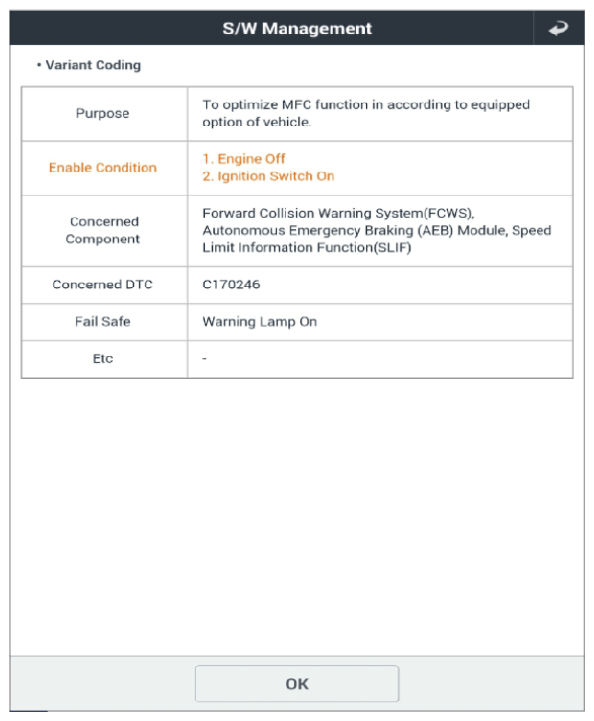

G13294440Courtesy of KIA MOTORS AMERICA, INC.

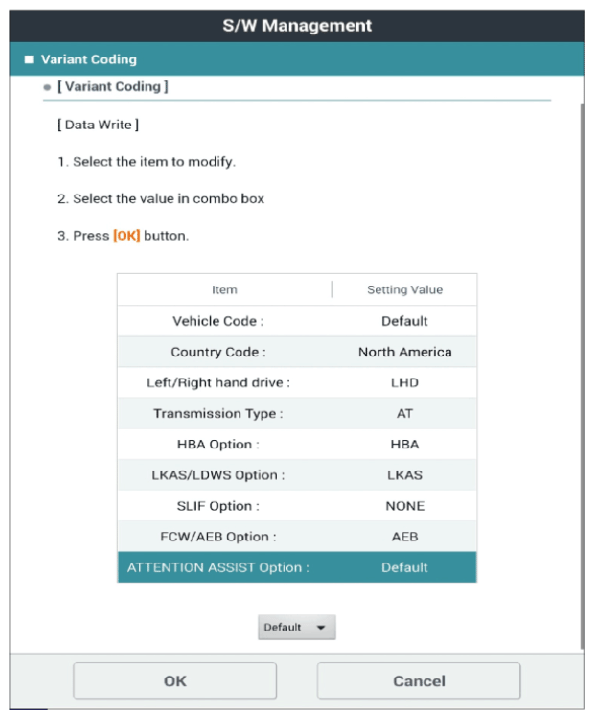

G13294441Courtesy of KIA MOTORS AMERICA, INC.

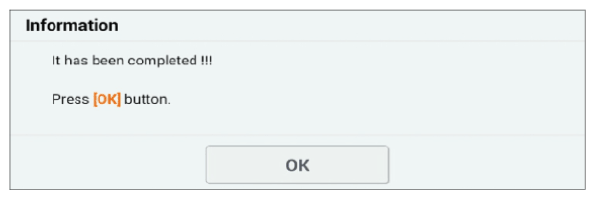

G13294442Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON" and engine "OFF".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 9
