Display Audio

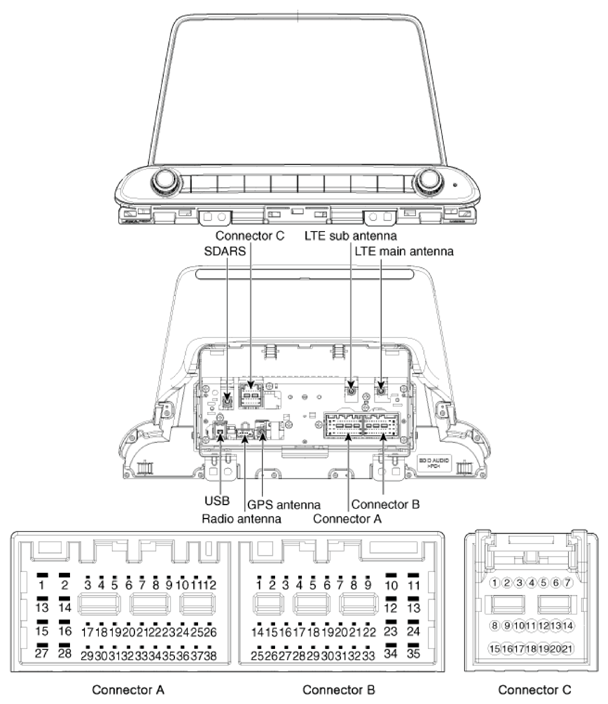

G13305708Courtesy of KIA MOTORS AMERICA, INC.
Pin Connector A Connector B Connector C
External Amplifier Internal Amplifier
1 - Rear door left speaker (+) - -
2 - Rear door left speaker (-) MIC (+) I-CAN high
3 Amplifier navigation voice (+) - - -
4 Amplifier SPDIF (High) - - -
5 - Antenna power -
6 RVM Camera: Power Illumination (+) -
7 RVM Camera: Video Multimedia-CAN (High) -
8 - - -
9 - - I-CAN low
10 AUX Audio right_input Battery (+) -
11 AUX_Detect Battery (+) -
12 Steering wheel remote controller Ground -
13 - Front door left speaker (+) Ground -
14 - Front door left speaker (-) - -
15 - Front door right speaker (-) MIC (-) -
16 - Front door right speaker (+) - MTS_key
17 Amplifier navigation voice (-) - - -
18 Amplifier SPDIF (Low) - - -
19 Amplifier SPDIF (Ground) - Illumination (-) -
20 RVM Camera: Power ground Multimedia-CAN (Low) -
21 RVM Camera: Video ground - -
22 - ACC
23 - -
24 AUX Audio left_input -
25 AUX Audio ground Reverse
26 Steering wheel remote controller (Ground) -
27 - Rear door right speaker (-) -
28 - Rear door right speaker (+) -
29 - -
30 - -
31 - -
32 - -
33 RVM Camera: Shield ground IGN1
34 - -
35 - -
36 -
37 -
38 Vehicle Speed
Radio antenna Pin Function Pin Function
G13347973Courtesy of KIA MOTORS AMERICA, INC.
 1 FM/AM 2 Ground
USB Pin Function Pin Function
G13347974Courtesy of KIA MOTORS AMERICA, INC.
 1 USB VCC 3 USB data (+)
2 USB data (-) 4 USB ground
SDARS antenna Pin Function Pin Function
G13347975Courtesy of KIA MOTORS AMERICA, INC.
 1 SDARS 2 Ground
GPS antenna Pin Function Pin Function
G13347976Courtesy of KIA MOTORS AMERICA, INC.
 1 Signal 2 Ground
LTE main antenna Pin Function Pin Function
G13347977Courtesy of KIA MOTORS AMERICA, INC.
 1 Signal 2 Ground
LTE sub antenna Pin Function Pin Function
G13347978Courtesy of KIA MOTORS AMERICA, INC.
 1 Signal 2 Ground
