Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 8

Vehicle S/W Management

G14565310Courtesy of KIA MOTORS AMERICA, INC.
G14565311Courtesy of KIA MOTORS AMERICA, INC.

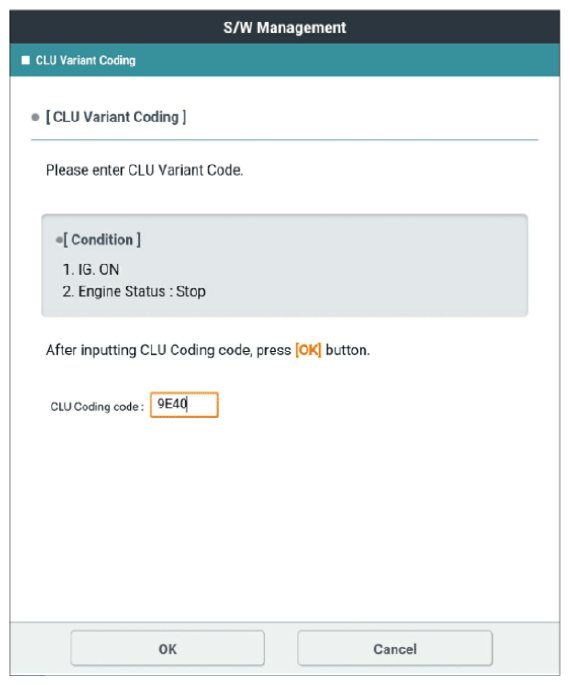

G14565312Courtesy of KIA MOTORS AMERICA, INC.

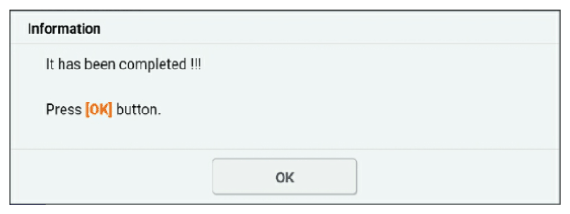

G14565313Courtesy of KIA MOTORS AMERICA, INC.

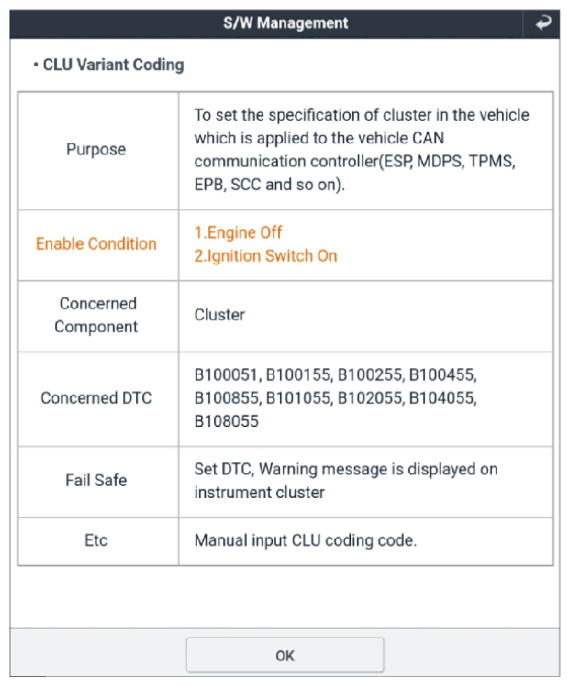

G14565314Courtesy of KIA MOTORS AMERICA, INC.

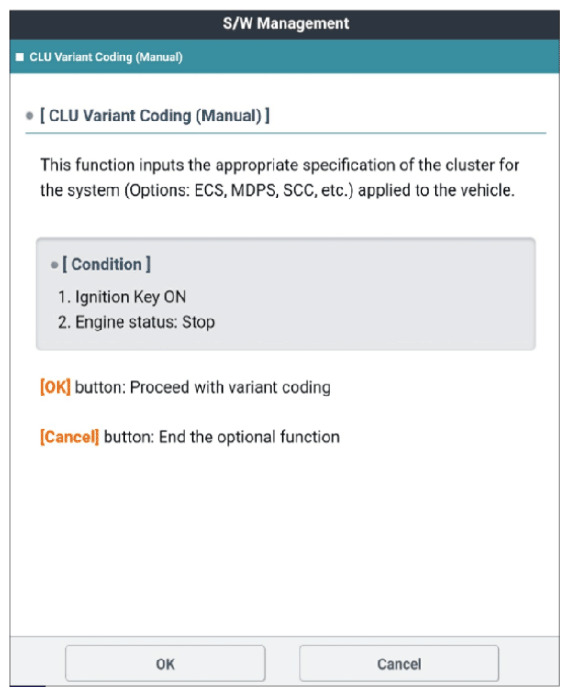

G14565315Courtesy of KIA MOTORS AMERICA, INC.

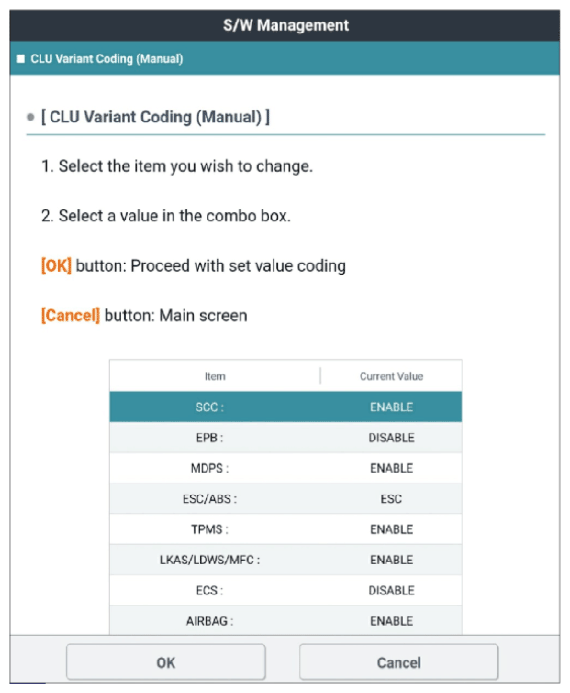

G14565316Courtesy of KIA MOTORS AMERICA, INC.

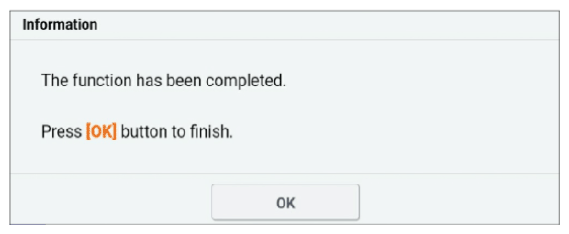

G14565317Courtesy of KIA MOTORS AMERICA, INC.
