Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 8
G13301929Courtesy of KIA MOTORS AMERICA, INC.
G13301930Courtesy of KIA MOTORS AMERICA, INC.

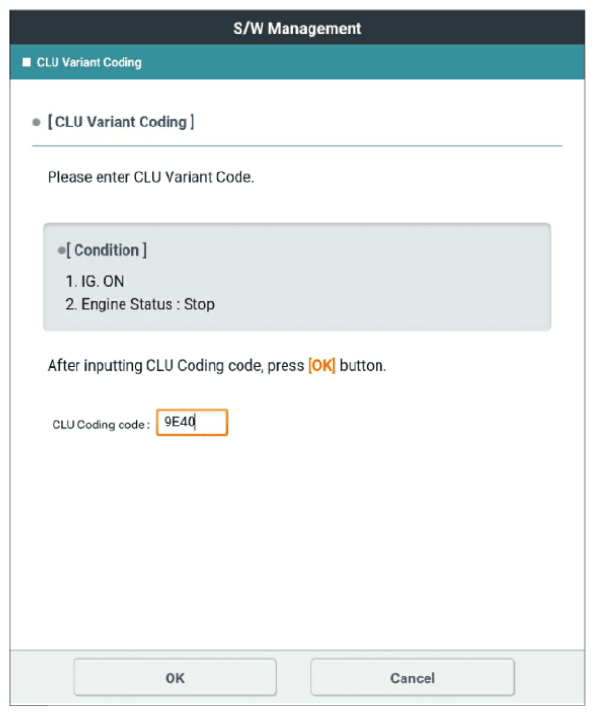

G13301931Courtesy of KIA MOTORS AMERICA, INC.

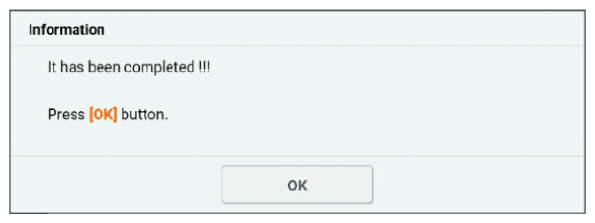

G13301932Courtesy of KIA MOTORS AMERICA, INC.

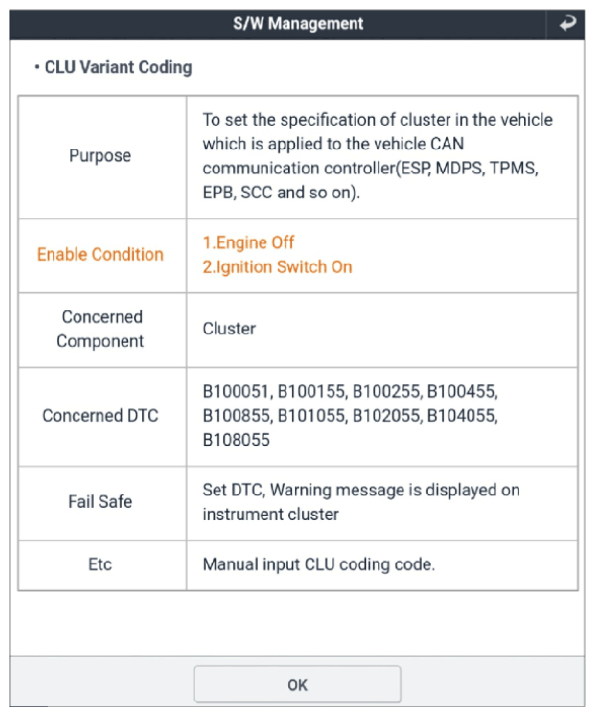

G13301933Courtesy of KIA MOTORS AMERICA, INC.

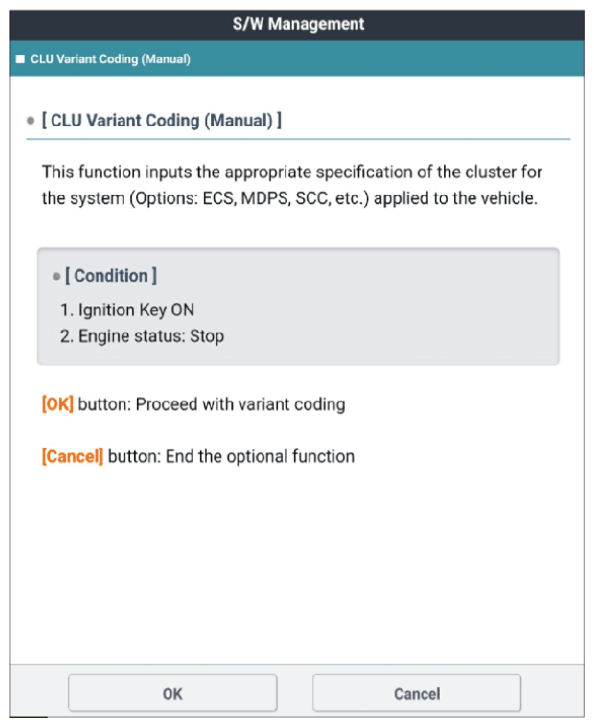

G13301934Courtesy of KIA MOTORS AMERICA, INC.

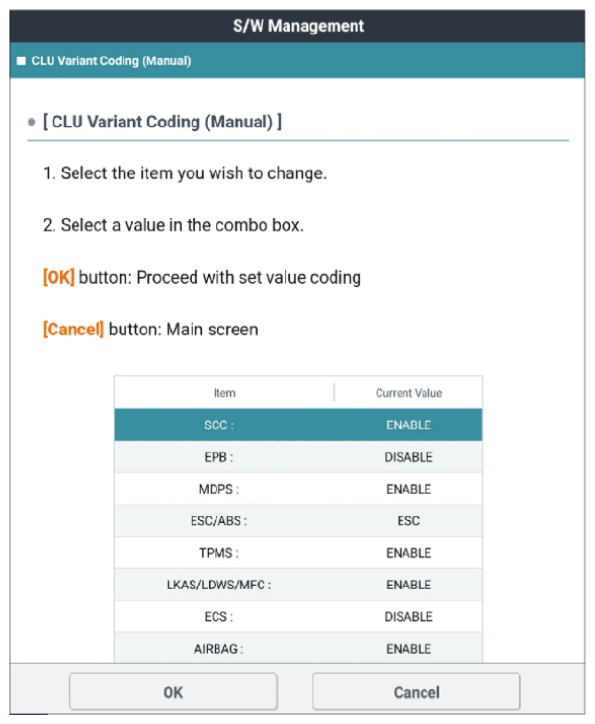

G13301935Courtesy of KIA MOTORS AMERICA, INC.

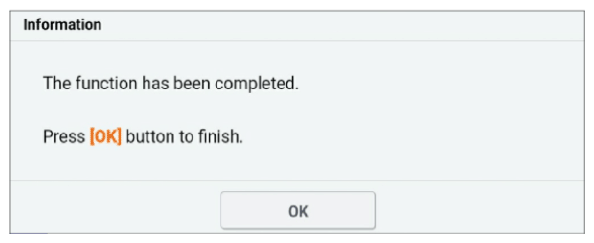

G13301936Courtesy of KIA MOTORS AMERICA, INC.
