Components & Components Location: Components

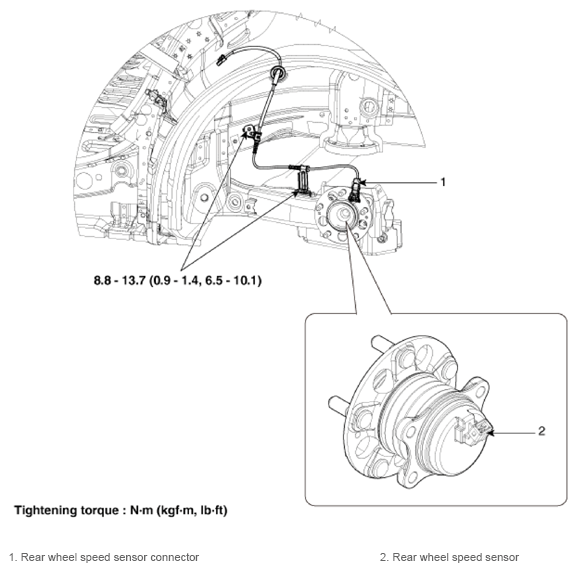

Fig 1: Rear Wheel Speed Sensor Components With Torque Specification
G13305076Courtesy of KIA MOTORS AMERICA, INC.
