Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 8

Vehicle S/W Management

G14565330Courtesy of KIA MOTORS AMERICA, INC.
G14565331Courtesy of KIA MOTORS AMERICA, INC.

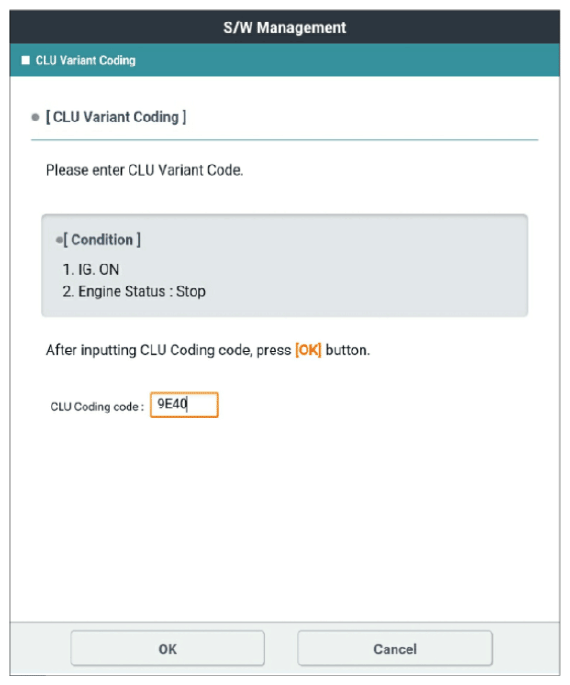

G14565332Courtesy of KIA MOTORS AMERICA, INC.

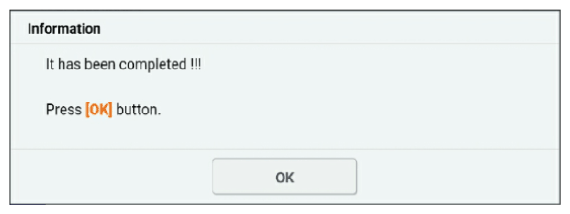

G14565333Courtesy of KIA MOTORS AMERICA, INC.

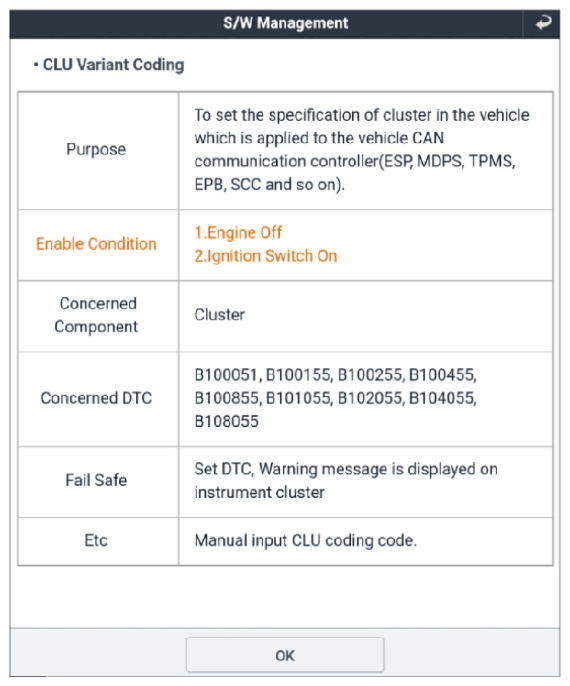

G14565334Courtesy of KIA MOTORS AMERICA, INC.

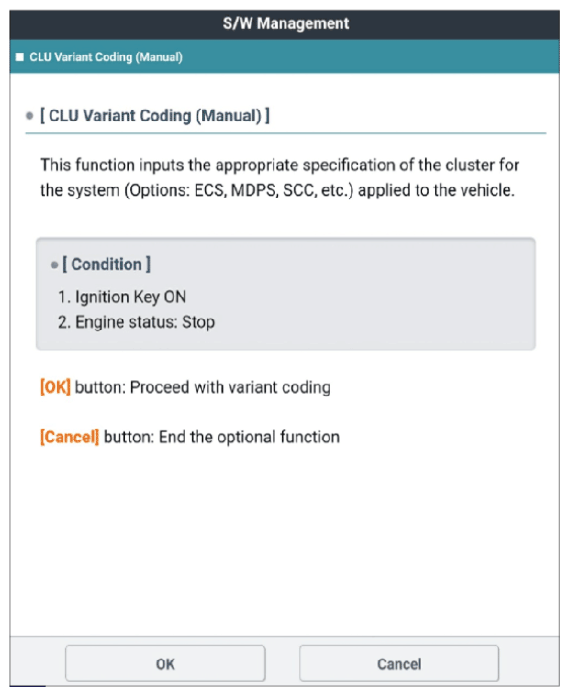

G14565335Courtesy of KIA MOTORS AMERICA, INC.

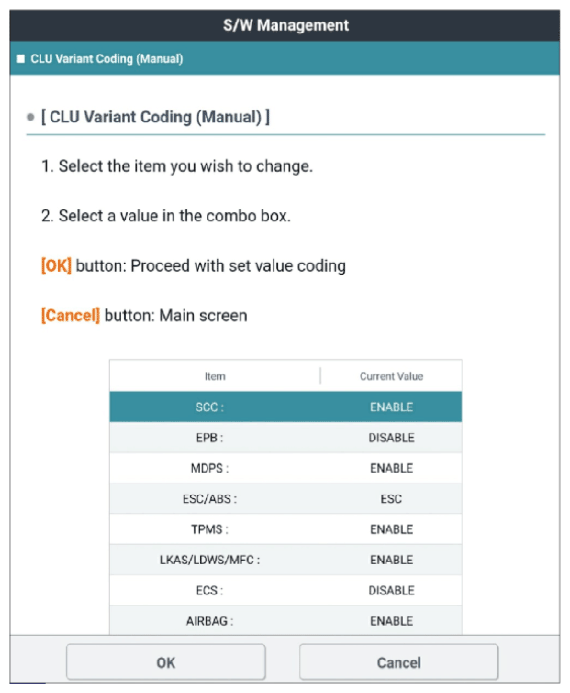

G14565336Courtesy of KIA MOTORS AMERICA, INC.

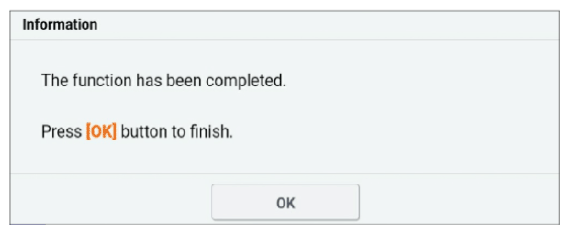

G14565337Courtesy of KIA MOTORS AMERICA, INC.
