Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 8

Vehicle S/W Management

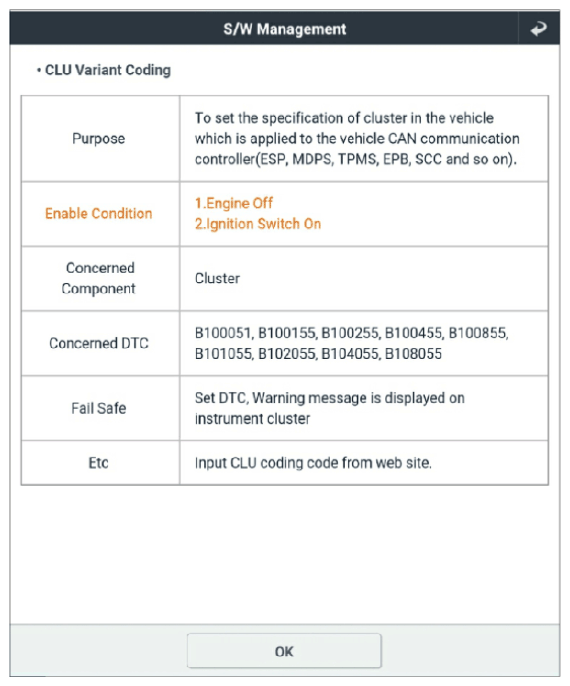

G14565490Courtesy of KIA MOTORS AMERICA, INC.

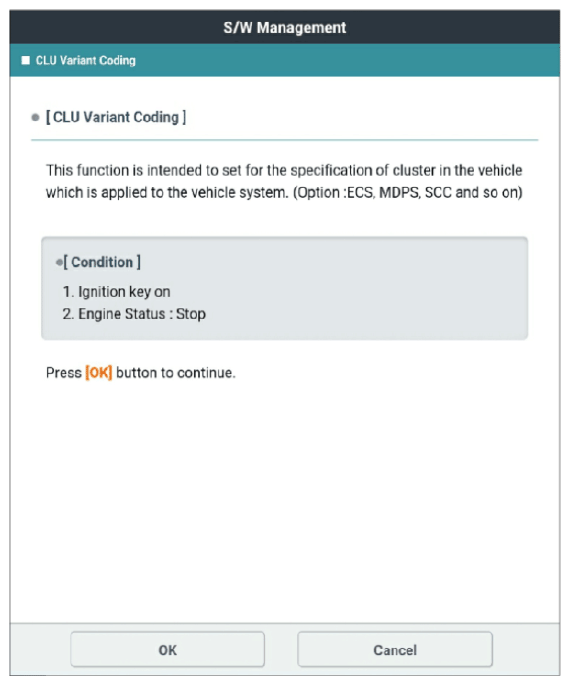

G14565491Courtesy of KIA MOTORS AMERICA, INC.

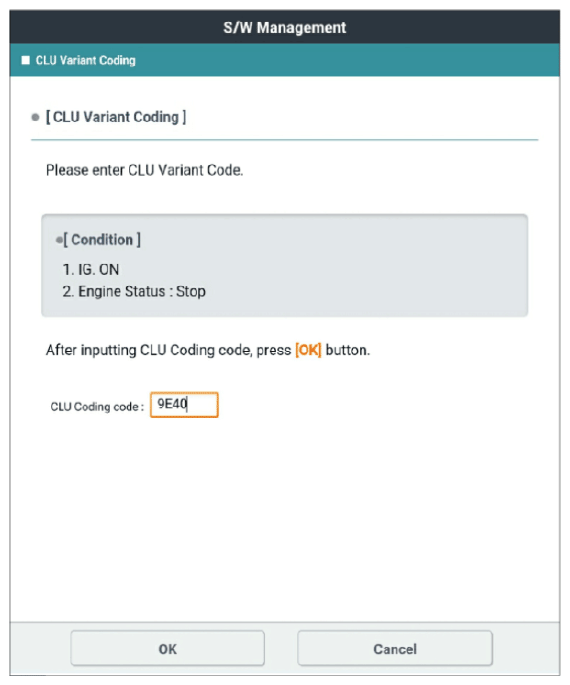

G14565492Courtesy of KIA MOTORS AMERICA, INC.

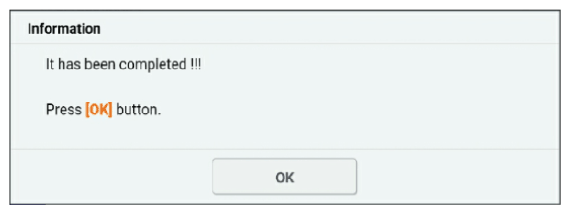

G14565493Courtesy of KIA MOTORS AMERICA, INC.

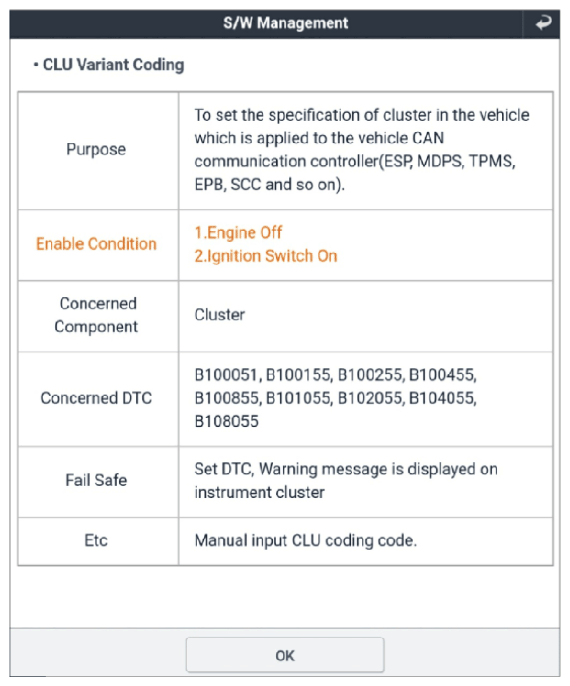

G14565494Courtesy of KIA MOTORS AMERICA, INC.

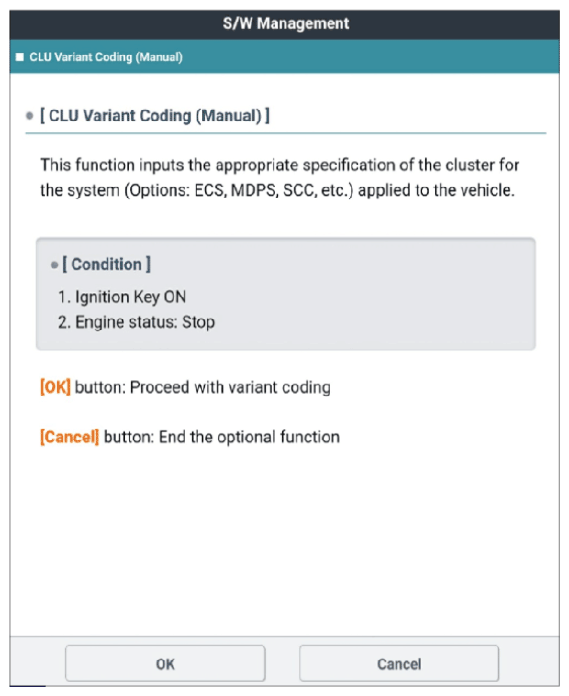

G14565495Courtesy of KIA MOTORS AMERICA, INC.

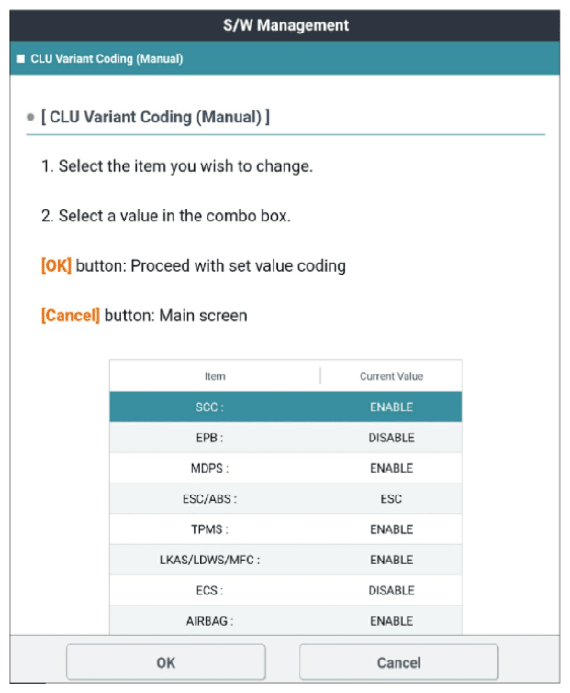

G14565496Courtesy of KIA MOTORS AMERICA, INC.

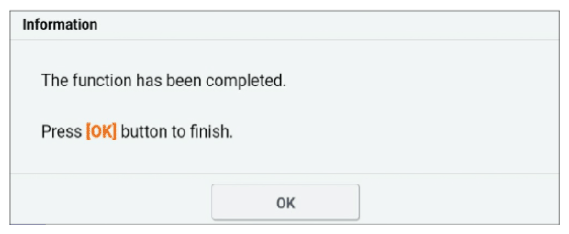

G14565497Courtesy of KIA MOTORS AMERICA, INC.
