Repair Procedures: Replacement
WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the evaporator core.
(Refer to Air Conditioning System- "EVAPORATOR CORE ")

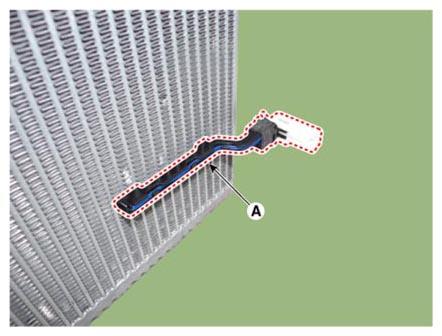

- Remove the evaporator temperature sensor (A) from the evaporator core.
- To install, reverse the removal procedure.
