Repair Procedures: Replacement
WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Remove the heater and blower assembly.
(Refer to Heater - "HEATER UNIT ")

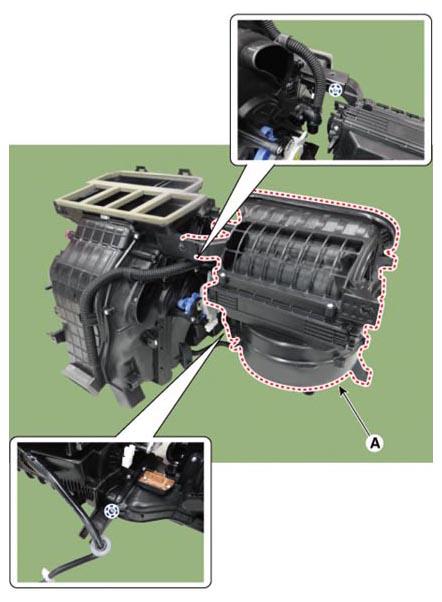

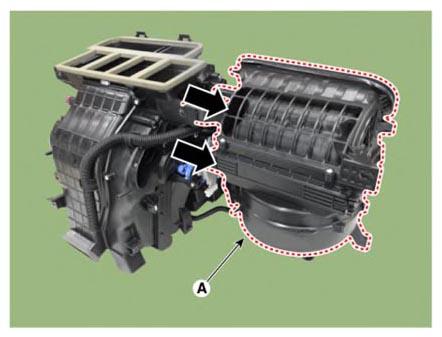

- Separate the blower unit (A) from the heater unit after loosening the screws.
[Front]

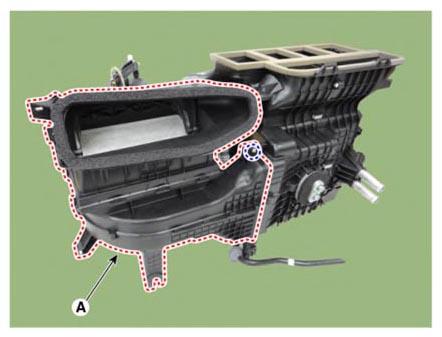

[Rear]
- To install, reverse the removal procedure.
