Repair Procedures: Installation

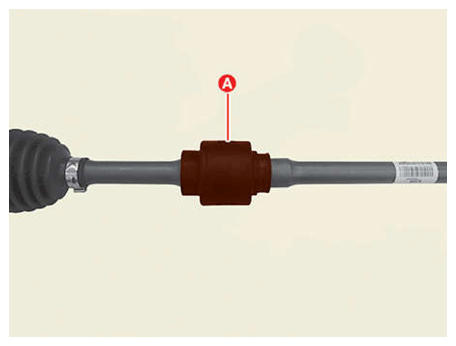

  1. Install the dynamic damper (A).
    G13304361Courtesy of KIA MOTORS AMERICA, INC.

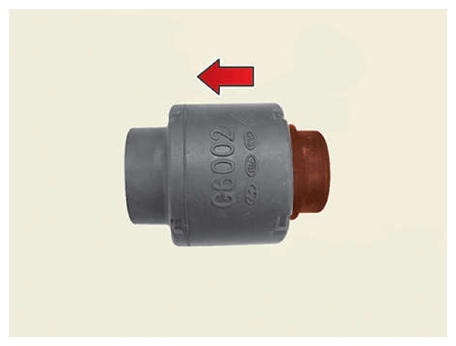

    NOTE: When installing the dynamic damper, install it in the direction of the arrow. Installing in the wrong direction can cause secondary quality problems.
    G13304362Courtesy of KIA MOTORS AMERICA, INC.

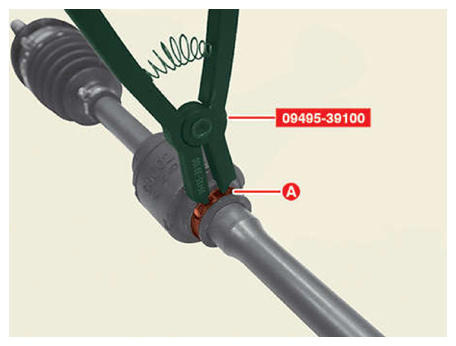

  2. Install the dynamic damper band (A) using SST (09495-39100).
    G13304363Courtesy of KIA MOTORS AMERICA, INC.

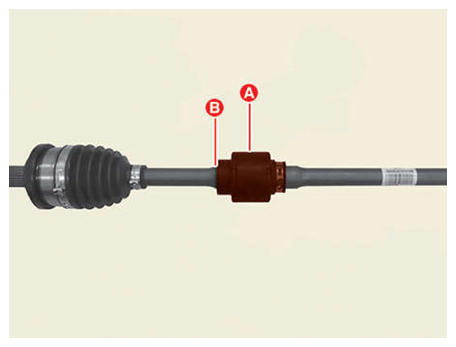

    NOTE: When installing the dynamic damper (A), make sure that the damper fits into the groove (B).
    G13304364Courtesy of KIA MOTORS AMERICA, INC.
  3. Install the transaxle side joint.

    (Refer to Driveshaft Assembly - "JOINT ASSEMBLY (TRANSAXLE SIDE) ")

  4. Install the front driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
