Components Location

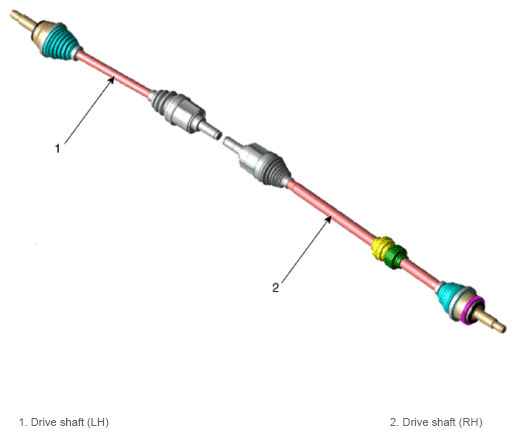

G13304309Courtesy of KIA MOTORS AMERICA, INC.

[RH]

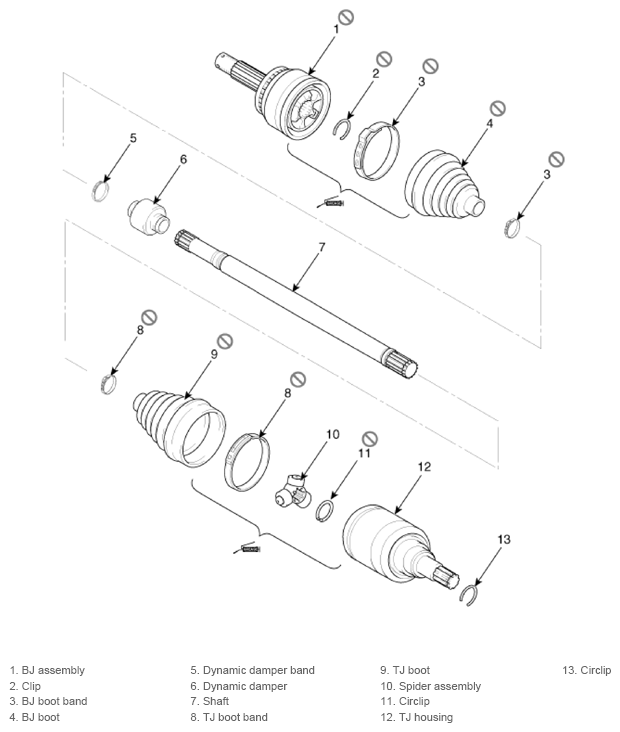

G13304310Courtesy of KIA MOTORS AMERICA, INC.

[LH]

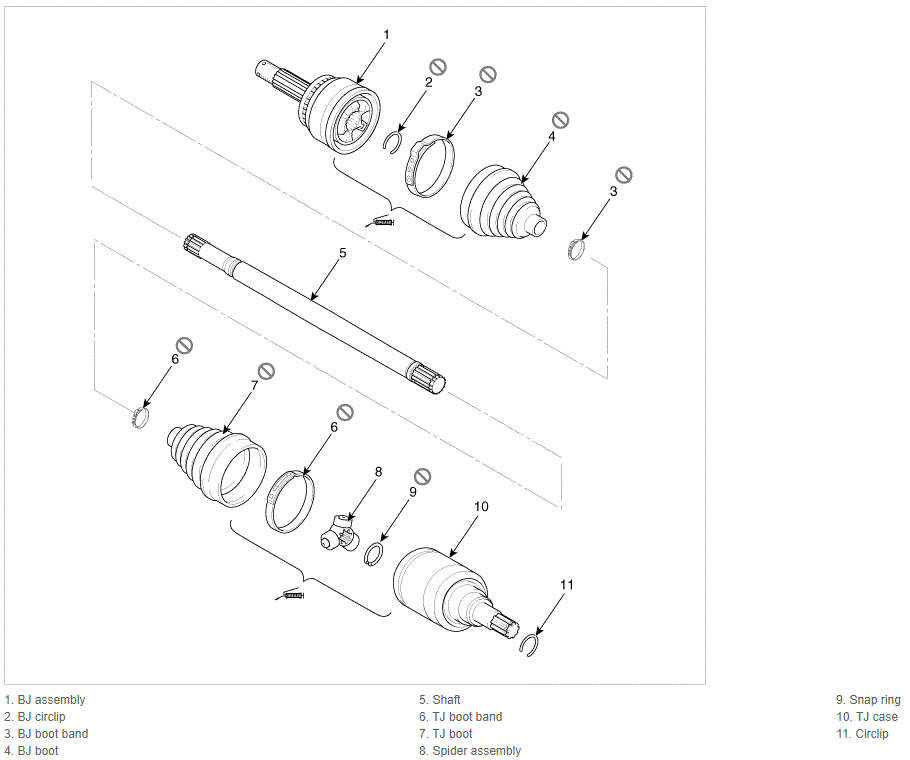

G13304311Courtesy of KIA MOTORS AMERICA, INC.
