Repair Procedures: Replacement
WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.

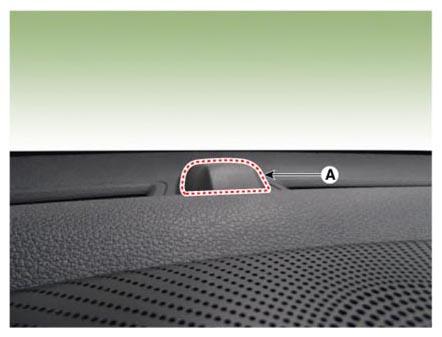

- Using a scraper or remover, remove the photo sensor (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

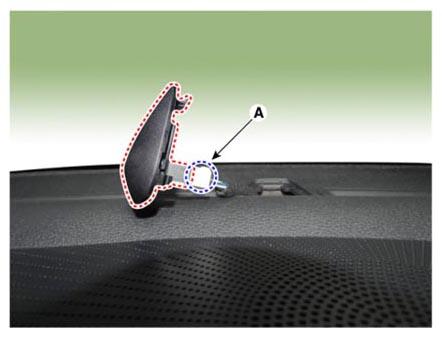

- Disconnect the photo sensor connector (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
- To install, reverse the removal procedure.
