Repair and Diagnosis
>>
Body & Frame
>>
Exterior/Interior Trim
>>
Floor Console Assembly
>>
Components And Components Location
>>
Components
>>
[SBW Console]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
[SBW Console]

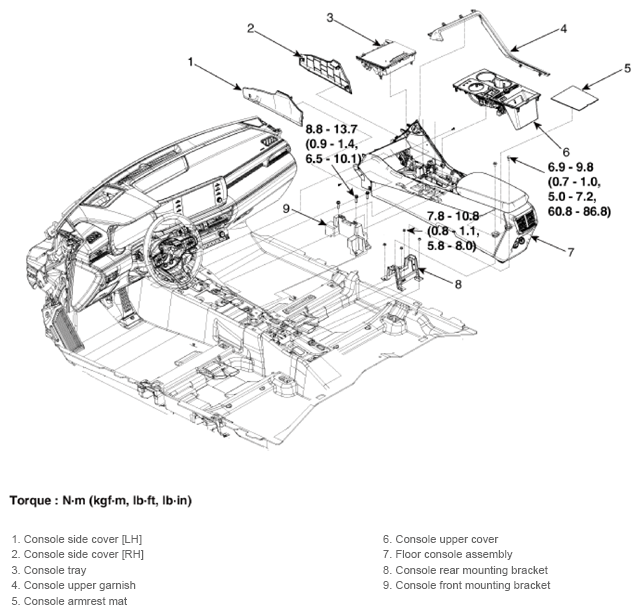

Fig 1: Floor Console Components Location With Torque Specification (SBW Console)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
