Repair Procedures: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.
Put on gloves to prevent hand injuries.

Remove the rear console cover.
(Refer to " Replacement ")

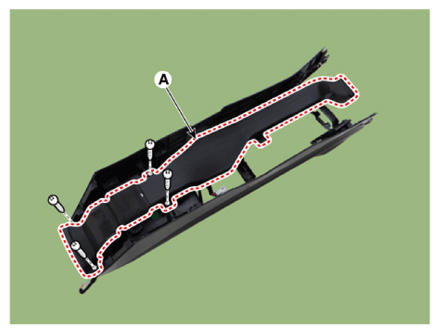

After loosening the mounting screws, remove the center console duct (A).

Courtesy of KIA MOTORS AMERICA, INC.

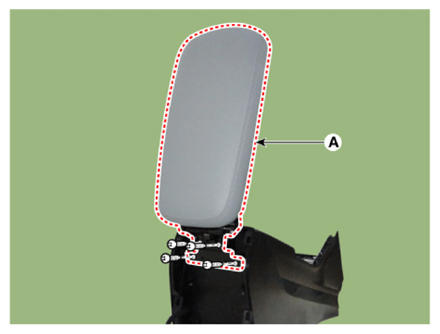

Loosen the mounting screws and remove the console armrest (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
