Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Wear gloves to protect hands from injury.

Information

When removing and installing the trunk lid, an assistant is needed.

Remove the trunk lid trim.
(Refer to " Replacement ")
Remove the rear combination lamp.
(Refer to " Removal ")
Disconnect the connectors and trunk lid wiring harness.

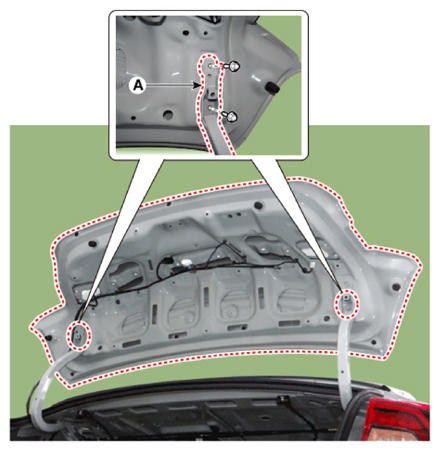

After loosening the mounting bolts, then remove the trunk lid assembly (A).
Tightening torque:

6.9 - 8.8 N m (0.7 - 0.9 kgf m, 5.0 - 6.5 lb ft, 60.8 - 78.1 lb in)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE:
- Make sure the trunk lid locks/unlocks and opens/closes properly.
- Adjust the trunk lid alignment.
- Make sure the connectors are connected in properly.
- Replace any damaged clips (or pin-type retainers).
