Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

Information

When compressing the coil spring, be cautious as there may be corrosion due to damage to the coil spring painting. In order to avoid such painting damage, compress by putting over a piece of plastic hose, etc. (Refer to the picture below.)

Courtesy of KIA MOTORS AMERICA, INC.

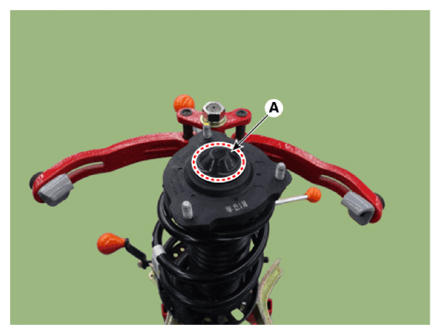

Remove the insulator dust cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

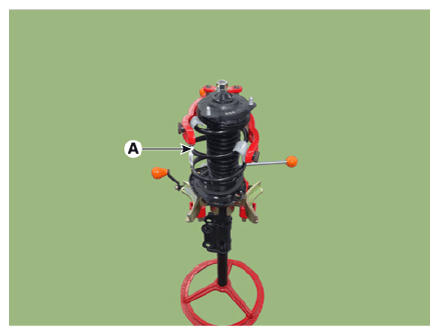

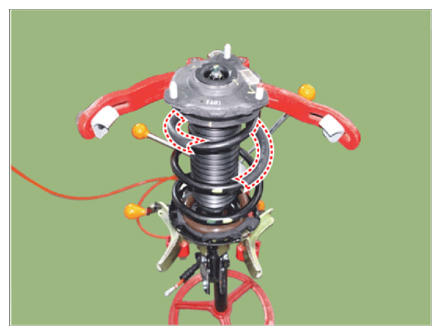

Using the spring compressor, compress the coil spring (A).
Do not compress the spring more than necessary.

Courtesy of KIA MOTORS AMERICA, INC.

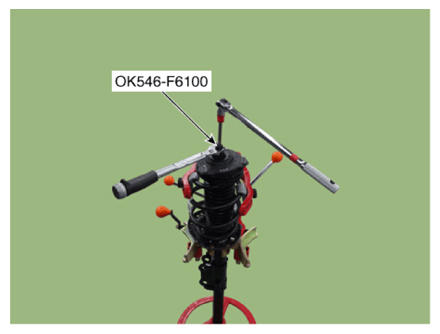

Using SST (0K546-F6100), remove the self locking nut.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the insulator, spring pad, coil spring and dust cover from the strut assembly.

Courtesy of KIA MOTORS AMERICA, INC.
