Repair Procedures: Reassembly

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

Install the insulator, spring pad, coil spring and dust cover from the strut assembly.

CAUTION:

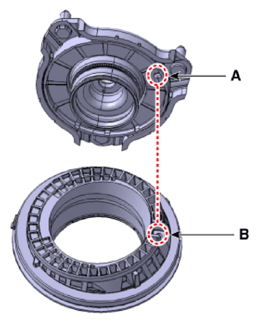

When install the insulator and strut bearing align the insulator lug (A) with the strut bearing hole (B).

Courtesy of KIA MOTORS AMERICA, INC.

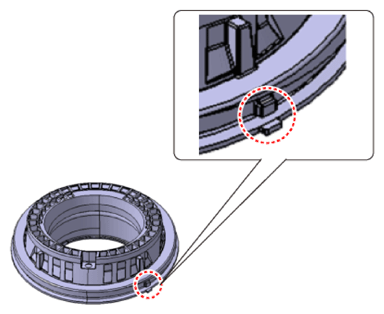

Align the strut upper housing with the lower housing lug and than installing.

Courtesy of KIA MOTORS AMERICA, INC.

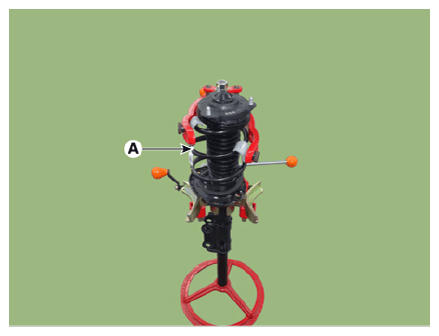

Compress and extend the piston rod (A) and check that there is no abnormal resistance or unusual sound during operation.

Courtesy of KIA MOTORS AMERICA, INC.

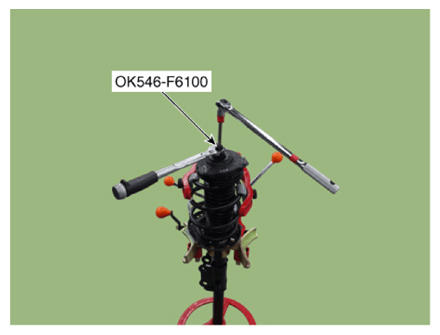

Using the special tool (0K546-F6100), install the self locking nut.
NOTE:
- Do not reuse the self locking nut.
Tightening torque:

107.8 -117.7 N.m (11.0 - 12.0 kgf.m, 79.6 - 86.8 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

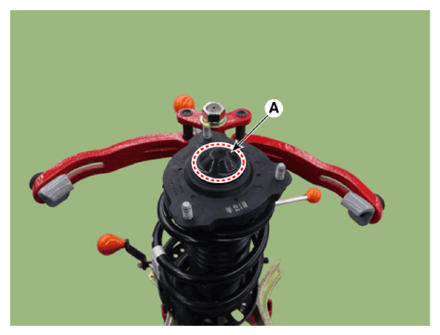

Install the insulator cap (A).

Courtesy of KIA MOTORS AMERICA, INC.
