Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the (-) battery terminal.

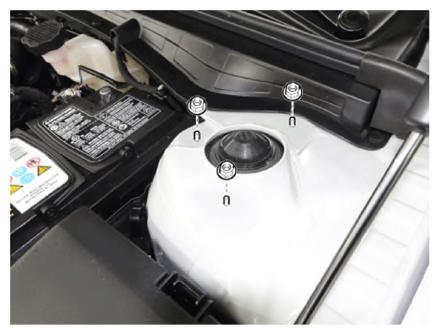

Remove the front strut upper mounting nuts (A).
Tightening torque:

53.9 - 68.6 N.m (5.5 - 7.5 kgf.m, 39.8 - 50.6 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front wheel and tire.
(Refer to " Removal ")

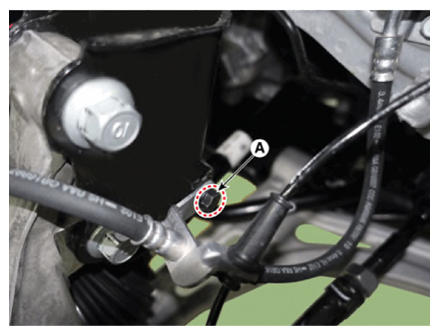

Remove the mounting bolt (A) and then remove the brake hose bracket from the strut assembly.
Tightening torque:

8.8 -13.7 N.m (0.9 -1.4 kgf.m, 6.5 -10.1 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

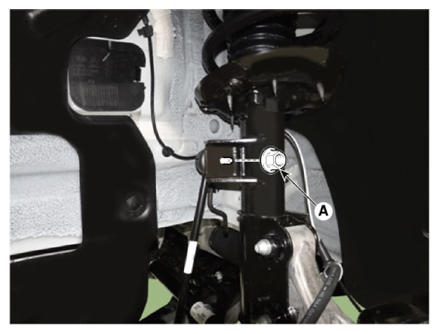

Disconnect the stabilizer bar link with the front strut assembly after removing the nut (A).
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- When removing the nut (A), fix the outer hexagon of stabilizer bar link.
- Be careful not to damage the stabilizer bar link boots.

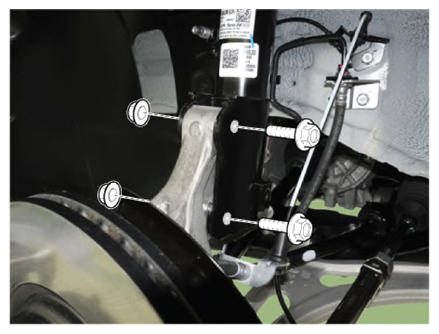

Remove the front strut assembly from the front axle by removing the bolts and nuts.
Tightening torque:

196.1 - 215.7 N.m (20.0 - 22.0 kgf.m, 144.7 - 159.1 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
