[Non-Smart Key]
WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

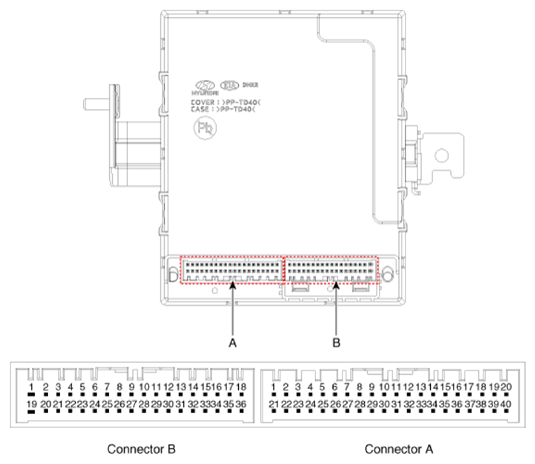

| Pin | Function | |
|---|---|---|
| Connector A | Connector B | |
| 1 | - | Front washer switch (Output) |
| 2 | Rear seat belt indicator_Left (Output) | - |
| 3 | - | Key solenoid (Output) |
| 4 | - | Key in switch (Input) |
| 5 | - | Key inter lock switch (Input)/'P: Position switch |
| 6 | Rear seat belt indicator_Center (Output) | Wiper parking switch (Input) |
| 7 | - | - |
| 8 | Rear seat belt indicator_Right (Output) | Brake switch (Input) |
| 9 | - | - |
| 10 | Headlamp high switch (Input) | Front wiper volume switch (Input) |
| 11 | - | Key hole illumination (Output) |
| 12 | - | LIN4 (Safety ECU) |
| 13 | Rear view switch (Input) | PAS Option (Input) |
| 14 | - | - |
| 15 | RPAS Power (Output) | B-CAN (Low) |
| 16 | FRAS Power (Output) | B-CAN (High) |
| 17 | PAS/RPAS Power (Input) | - |
| 18 | - | Ground (Power) |
| 19 | - | - |
| 20 | Ground (ECU) | Immobilizer power (Output) |
| 21 | - | Immobilizer ground (Output) |
| 22 | K-Line_Immobilizer | Start inhibit relay |
| 23 | - | PAS/RPAS Switch indicator (Output) |
| 24 | - | Front wiper switch (Input) |
| 25 | Sunroof status (Input) | - |
| 26 | PAS/RPAS Switch (Input) | Multifunction switch ground (Input) |
| 27 | ATM Solenoid (Output) | Wiper power relay (Output) |
| 28 | - | Auto light sensor ground (Output) |
| 29 | LIN2 (ROA) | Auto light sensor signal (Input) |
| 30 | LIN1 (PDW-F or PDW-R) | Auto light sensor power (Output) |
| 31 | Door unlock signal (For IFU) EMS (Output) | - |
| 32 | Light switch (Input) | Front wiper high relay (Output) |
| 33 | Fog switch (Input) | Front wiper low relay (Output) |
| 34 | IGN2 (Input) | Front wiper lowbackup switch (Input) |
| 35 | IGN1 (Input) | P-CAN (Low) |
| 36 | ACC (Input) | P-CAN (High) |
| 37 | Battery + (ECU) | |
| 38 | Battery + (Power) | |
| 39 | - | |
| 40 | Front heated nozzle (Output) | |
