Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box.

    (Refer to " Replacement  ")

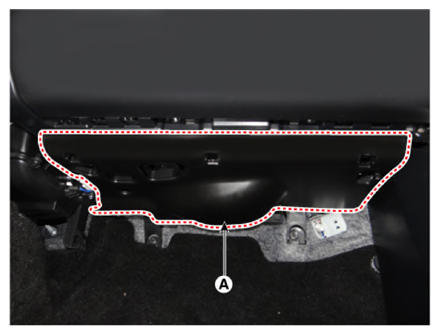

  3. Remove the crash pad under cover (A).
    G13836538Courtesy of KIA MOTORS AMERICA, INC.

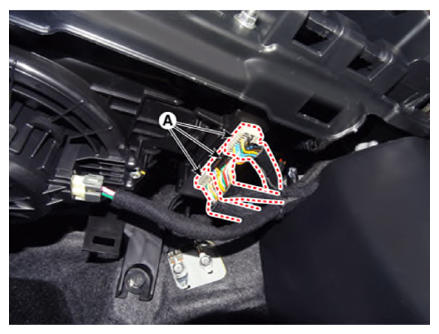

  4. Disconnect the heater controller unit connectors (A).
    G13836539Courtesy of KIA MOTORS AMERICA, INC.

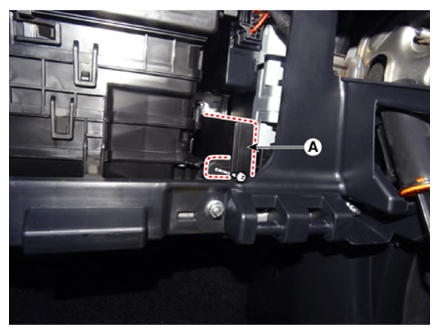

  5. Remove the heater control unit (A) by loosening the mounting screw.
    G13836540Courtesy of KIA MOTORS AMERICA, INC.
    6. IMPORTANT: Install in the reverse order of removal.

    Information

    • Make sure the connector are connected in properly.
