MDPS Tuning Data Setting Procedure

  1. Select "MDPS Tuning Data Setting(Backup and Write)"
  2. Proceed with the test according to the screen instructions.

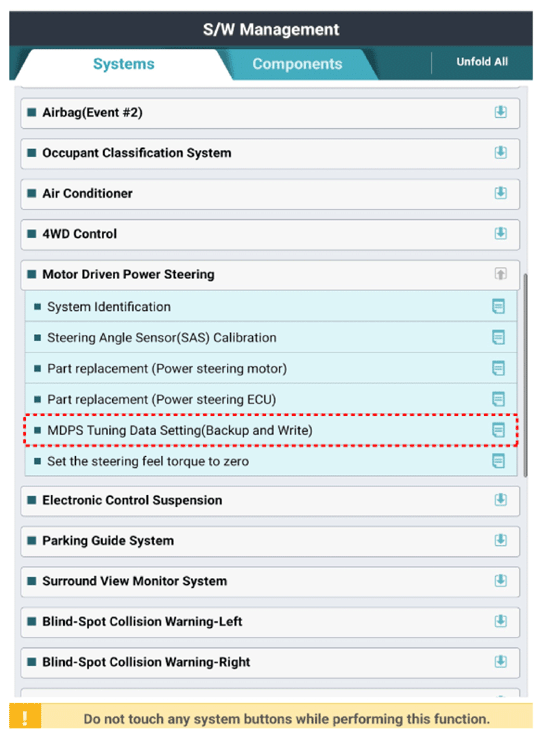

    G13834998Courtesy of KIA MOTORS AMERICA, INC.

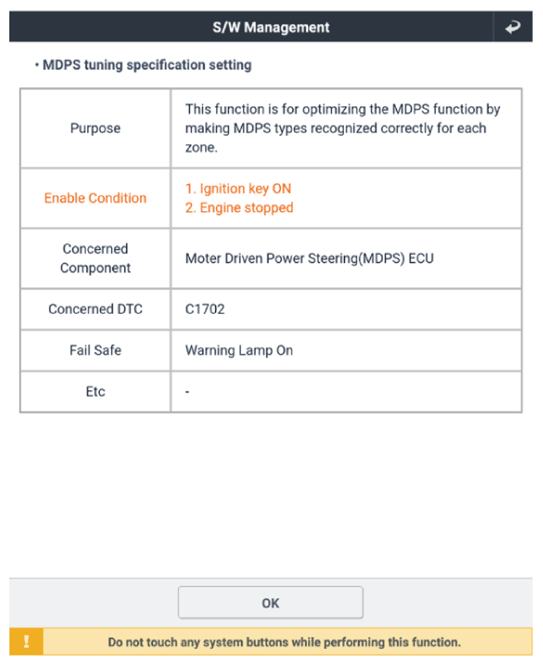

    G13834999Courtesy of KIA MOTORS AMERICA, INC.
  3. Select "C2" Manual Button.

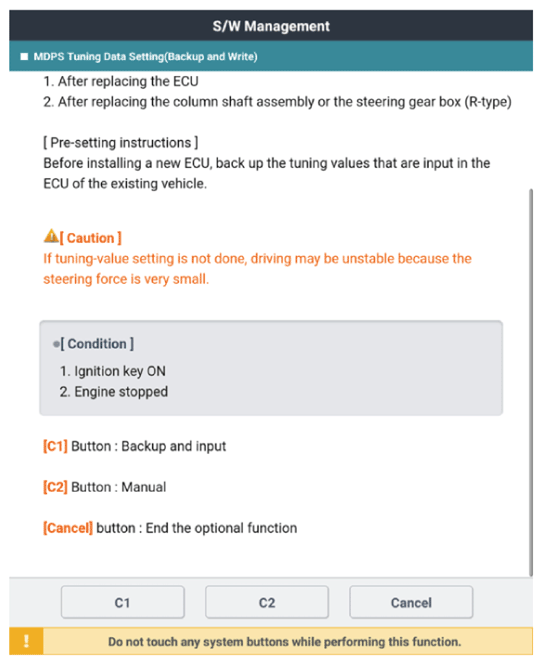

    G13835000Courtesy of KIA MOTORS AMERICA, INC.

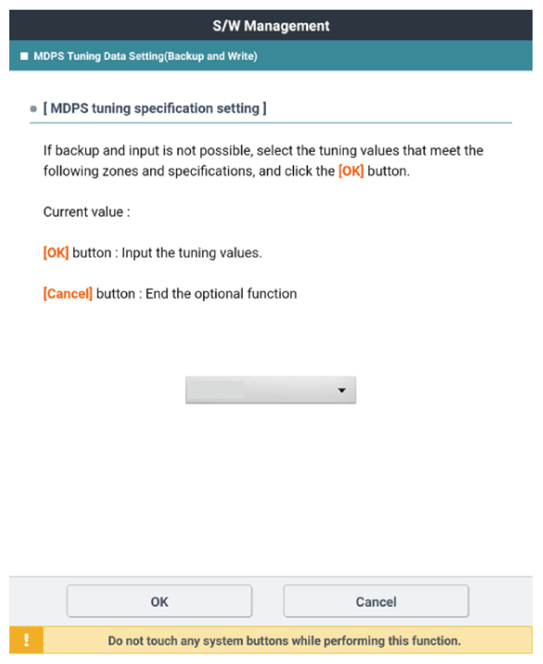

    G13835001Courtesy of KIA MOTORS AMERICA, INC.

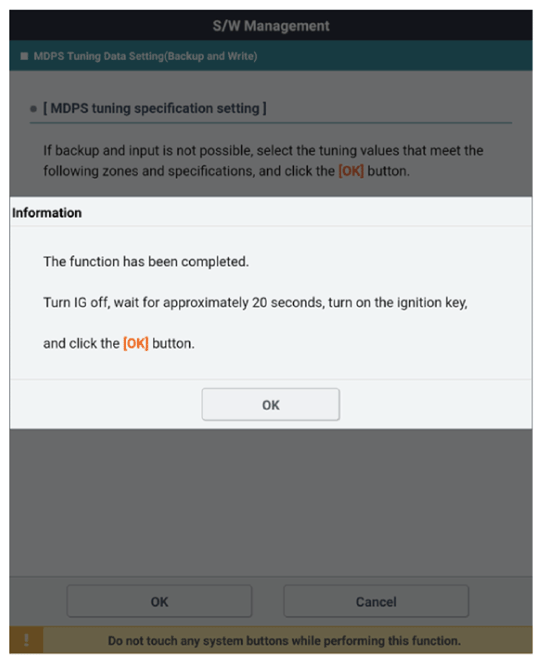

    G13835002Courtesy of KIA MOTORS AMERICA, INC.
