Vehicle S/W Management

Inspection Condition Inspection Procedure Reference

  1. Ignition "ON".

  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

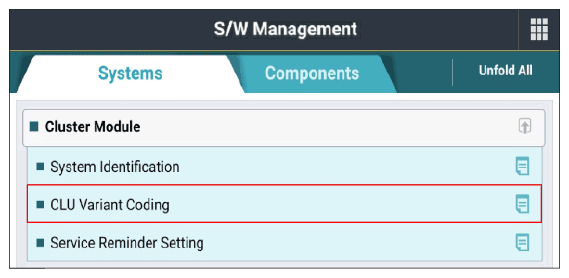

G13806934Courtesy of KIA MOTORS AMERICA, INC.

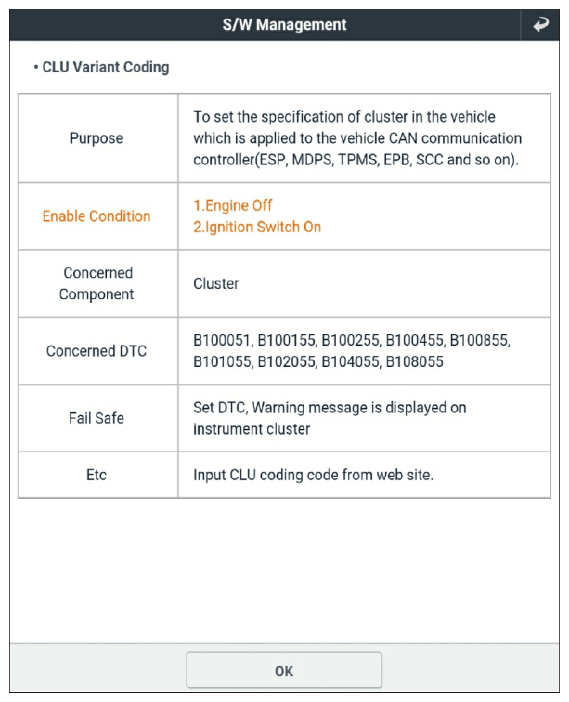

G13806935Courtesy of KIA MOTORS AMERICA, INC.
G13806936Courtesy of KIA MOTORS AMERICA, INC.

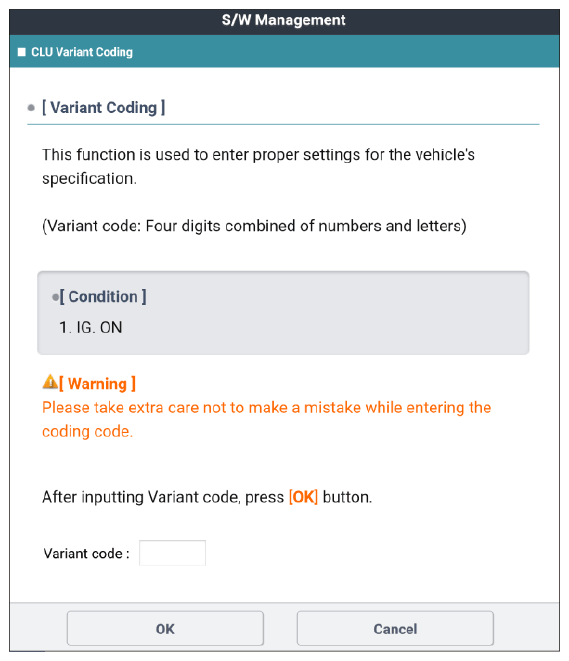

G13806937Courtesy of KIA MOTORS AMERICA, INC.

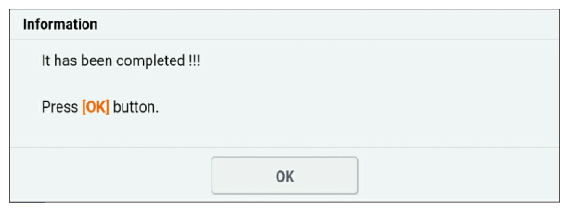

G13806938Courtesy of KIA MOTORS AMERICA, INC.
