Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:
    • Align the reference point at alignment point (A) and align front view camera.

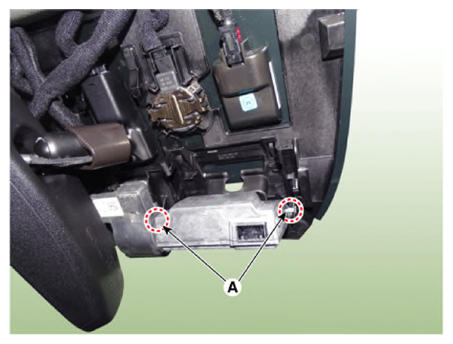

      G13836571Courtesy of KIA MOTORS AMERICA, INC.
    • Fully assembly so that you can hear a "clicking" sound when assembling.
  2. When replacing the front view camera with a new one, perform the "Variant Coding" procedure using KDS.

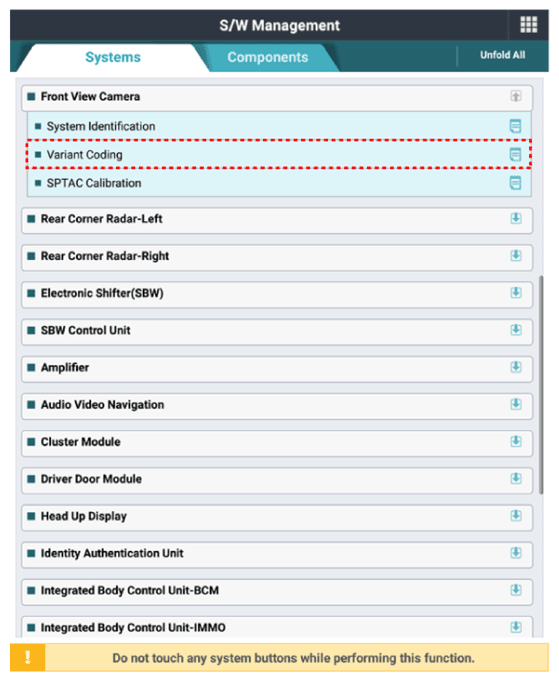

    G13836572Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform the front view camera unit calibration.

    (Refer to Front View Camera Unit - " ADJUSTMENT  ")
