Removal And Installation

Disconnect the (-) battery terminal.
Remove the front wheel and tire.
(Refer to " Removal ")
Remove the front wheel guard.
(Refer to " Replacement ")

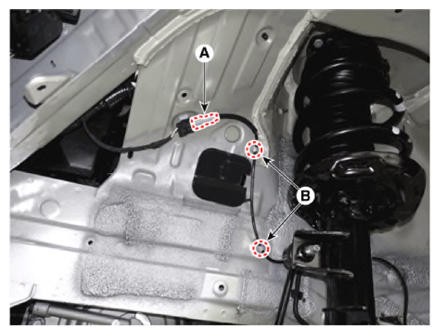

Disconnect the front wheel speed sensor connector (A) and then remove the fixing clip (B).

Courtesy of KIA MOTORS AMERICA, INC.

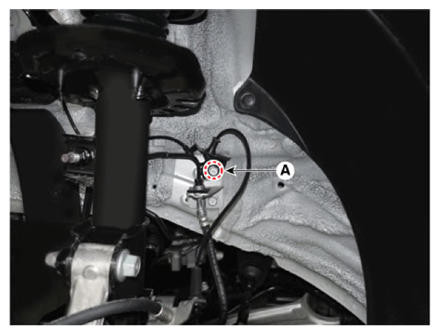

Remove the front wheel speed sensor cable bracket bolt (A).
Tightening torque:

19.6 - 29.4N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

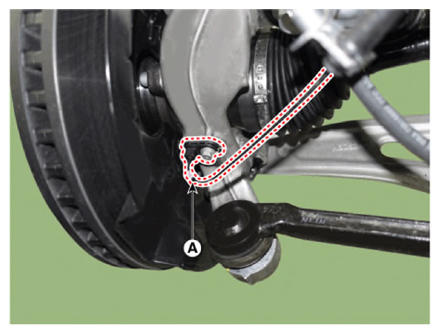

Loosen the bolt and then disconnect the front wheel speed sensor (A).
Tightening torque:

6.9 -10.8 N.m (0.7-1.1 kgf.m, 5.1 - 8.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
