Rear Wheel Speed Sensor Cap

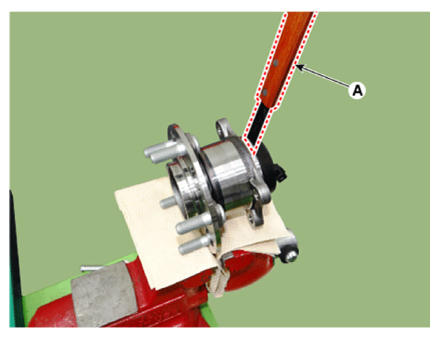

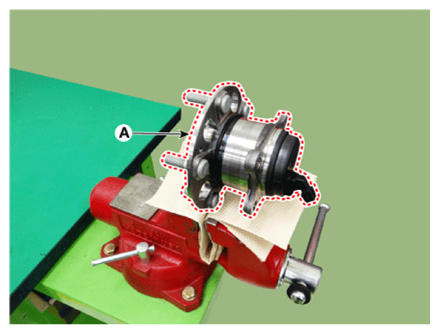

Remove the sensor cap by hammering on a gap between sensor cap and hub bearing assembly using a scraper (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

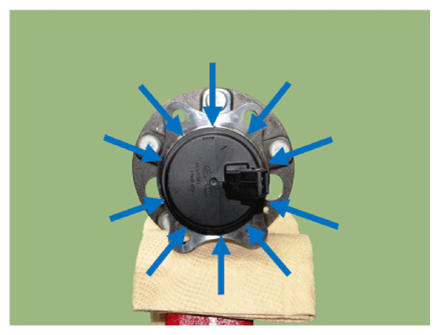

In order to widen the gap little by little, hammering around the bearing cap 10-20 times.

Courtesy of KIA MOTORS AMERICA, INC.

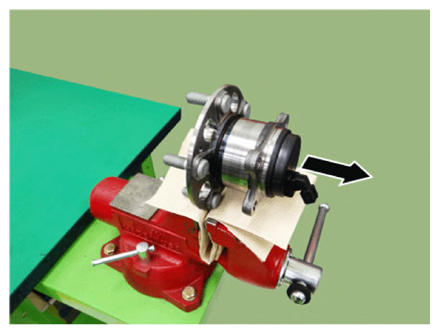

When removing the sensor cap, remove it in a straight direction not to damage the tone wheel or encoder.

Courtesy of KIA MOTORS AMERICA, INC.

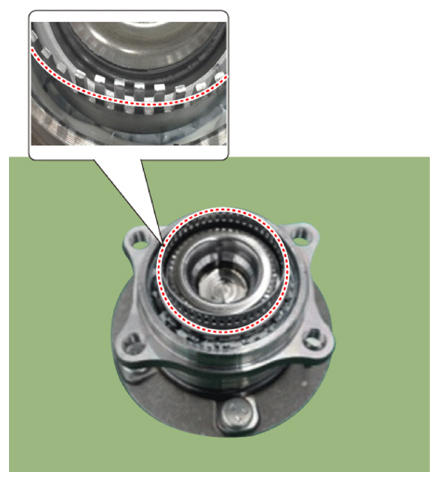

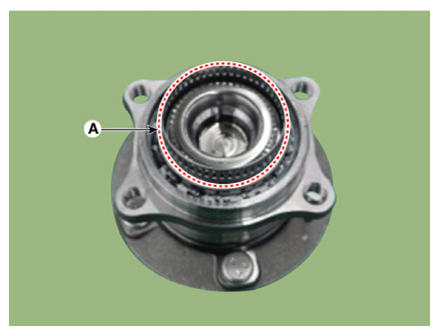

Check for distortion of damage of the tone wheel or encoder (A).

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Check if damaged the tone wheel or encoder after removing the sensor cap and replace the hub bearing if it was deformed.
- If the tone wheel is deformed, it may trigger the MIL ON or other problems.
Courtesy of KIA MOTORS AMERICA, INC.

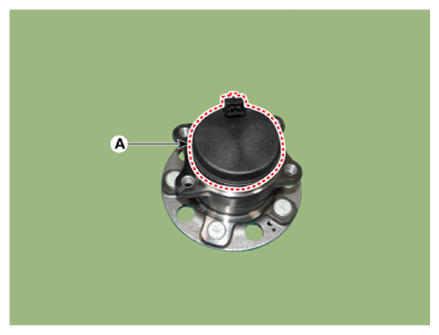

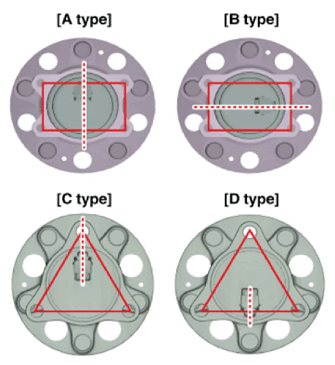

Position the sensor cap to the same direction of sensor cap connector (A) as you checked before removing.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Before installing the sensor cap, do not let any foreign material and contaminant into the hub bearing assembly.

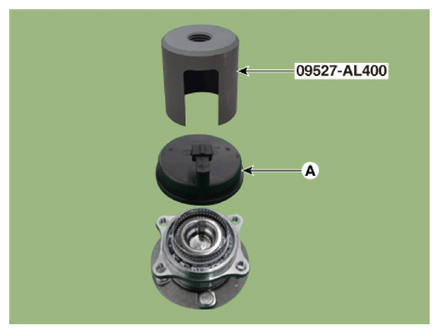

Install the sensor cap (A) with the special service tool (09527-AL400).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Be careful not to tilt to one side when installing the sensor cap as it may damage the tone wheel or encoder.

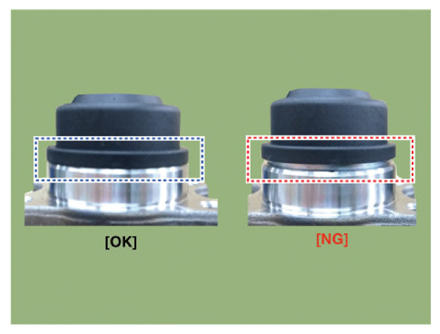

When sensor cap installation, hammering it until the gap disappeared between the sensor cap and hub bearing assembly.

Courtesy of KIA MOTORS AMERICA, INC.
