Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.

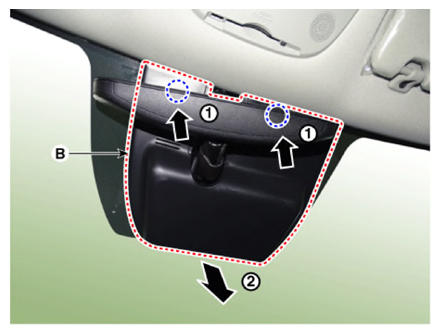

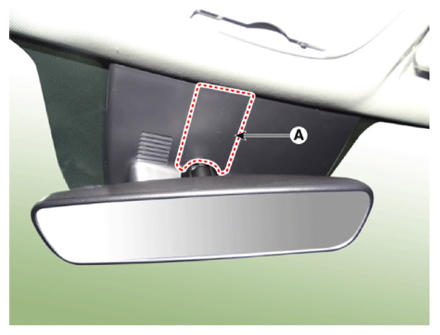

Remove the inside rear view mirror cover (A),(B).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

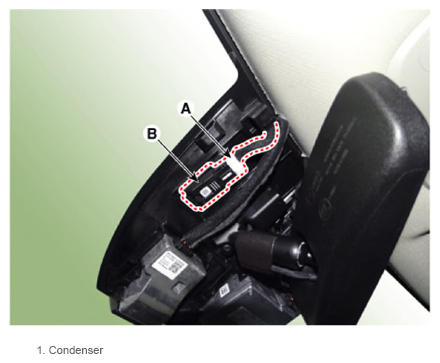

Remove the auto defogging sensor (B) by disconnecting the auto defogging sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure connectors are connected properly.
