Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center panel.

    (Refer to " Replacement  ")

  3. Remove the passenger shower duct (A) by loosening the mounting screw.
    G13836435Courtesy of KIA MOTORS AMERICA, INC.

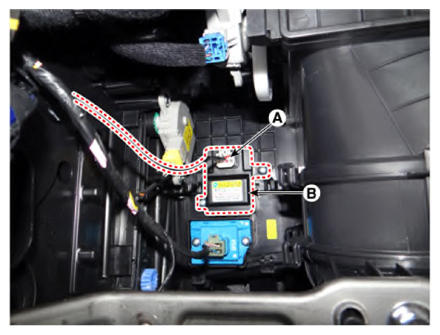

  4. Disconnect the cluster ionizer connector (A).
  5. Remove the cluster ionizer (B) by loosening the mounting screws.
    G13836436Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
