Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front tire [RH].
  2. Remove the engine room under cover.

    (Refer to " Removal And Installation  " )

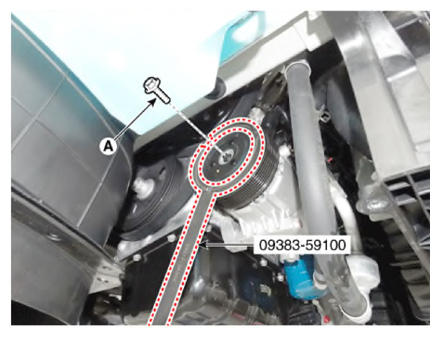

  3. Remove the clutch bolt (A) while holding the pulley with a clutch bolt remover (09383-59100).

    Tightening torque:

    9.8 - 14.7 N.m (1.03 - 1.53 kgf.m, 7.2 - 10.8 lb-ft)

    G13836407Courtesy of KIA MOTORS AMERICA, INC.

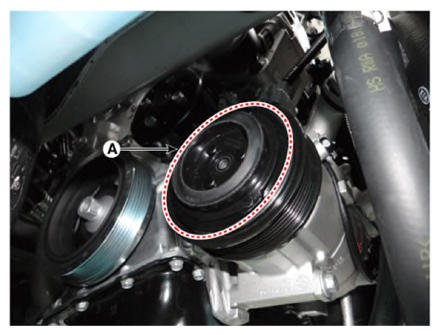

  4. Loosen the limiter bolts and then remove the limiter and hub assembly (A).
    G13836408Courtesy of KIA MOTORS AMERICA, INC.

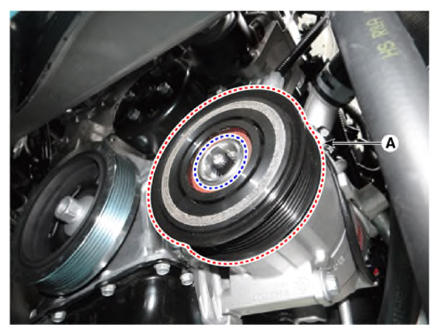

  5. Remove the pulley (A) after removing the snap ring with a snap ring plier.
    G13836409Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Be careful not to damage the pulley and compressor during disassembly/reassembly.
    • Once the snap ring is removed, replace it with a new one.
    • Be careful not to lose compressor clutch shim, if not reinstalled damage may occur.
  6. Reassemble in the reverse order of disassembly.
