Repair Procedures: Inspection: Notes
WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
- Check the plated parts of the limiter and hub assembly for color changes, peeling or other damage. If there is damage, replace the assembly.

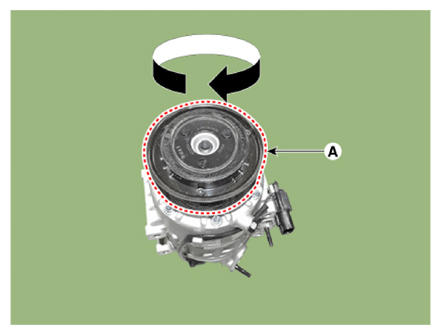

- Check the pulley (A) bearing play and drag by rotating the pulley by hand. Replace the pulley with a new one if it is noisy or has excessive play/drag.
 Courtesy of KIA MOTORS AMERICA, INC.
|
