Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant with a recovery/recycling/charging station.
  2. Disconnect the negative (-) battery terminal.
  3. Remove the front bumper assembly.

    (Refer to " Replacement  ")

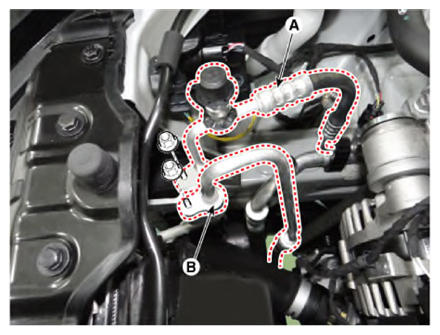

  4. Loosen the mounting nut, remove the suction line (A) and discharge line (B).

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

    G13836411Courtesy of KIA MOTORS AMERICA, INC.

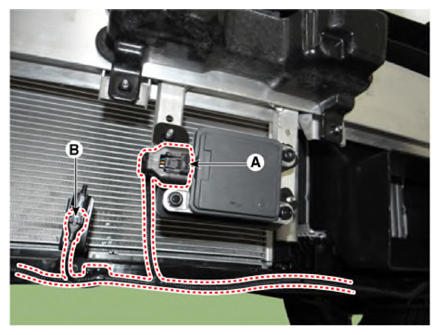

  5. Disconnect the smart cruise control unit connector (A) and ambient temperature sensor connector (B).
    G13836412Courtesy of KIA MOTORS AMERICA, INC.

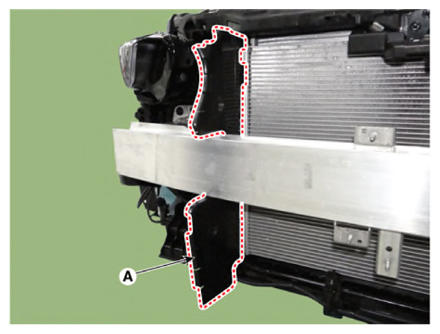

  6. Remove the cooling module air guard (A) after loosening the mounting bolt and screws.
    G13836413Courtesy of KIA MOTORS AMERICA, INC.

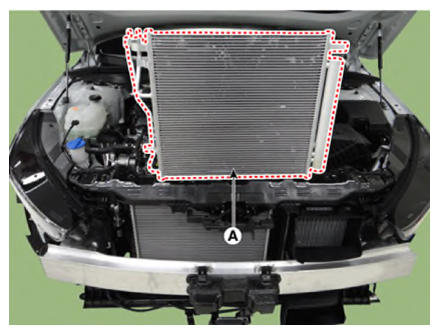

  7. Press the lock pin and remove the condenser assembly (A) from radiator assembly.
    G13836414Courtesy of KIA MOTORS AMERICA, INC.
  8. Install in the reverse order of removal.
    NOTE:
    • If you're installing a new condenser, add refrigerant oil.
    • Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-1234yf to avoid leakage.
    • Be careful not to damage the radiator and condenser fins when installing the condenser.
    • Charge the system, and test its performance.
