Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.
Put on gloves to prevent hand injuries.

Disconnect the negative (-) battery terminal.

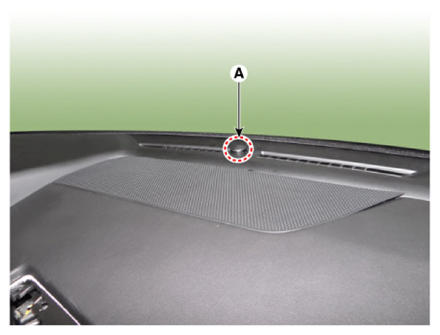

Remove the photo sensor and auto light sensor (A) by pressing the locking pins.

Courtesy of KIA MOTORS AMERICA, INC.

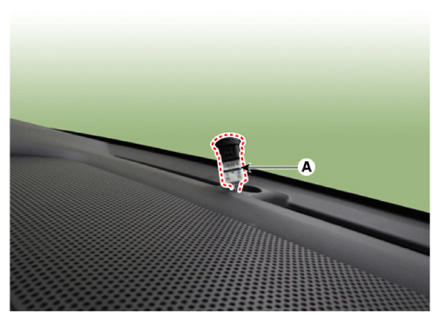

Disconnect the photo sensor and auto light sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure connectors are connected properly.
