Repair Procedures: Inspection
WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

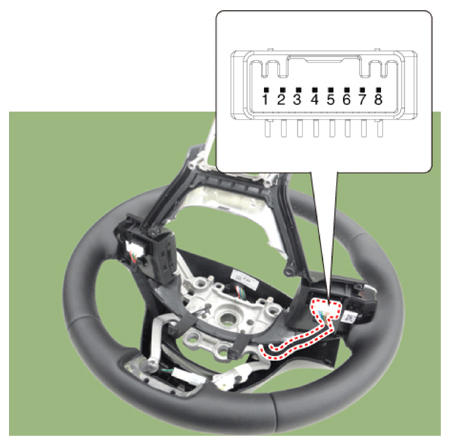

- Check for resistance between terminals in each switch position.
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Switch |
Connector terminal |
Resistance (±3%) |
| Pause |
2-6 |
610 Ω |
| Speed (Down) |
910 Ω |
| Speed (Up) |
1.38 kΩ |
| Cruise ON/OFF |
2.13 kΩ |
| SCC |
7.93 kΩ |
| Trip group |
1-6 |
610 Ω |
| Trip (Up) |
910 Ω |
| Trip (Down) |
1.38 kΩ |
| Trip (OK) |
2.13 kΩ |
| LFA |
7.93 kΩ |
