Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the front tires straight-ahead.
  2. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  3. Put a flat tool (Ø5mm) into a guide hole located in the left/right of steering wheel and press a DAB fastening pin.

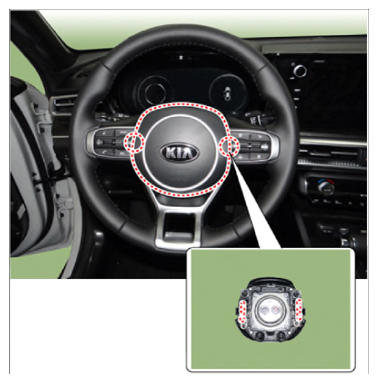

    G13835107Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the horn connector (A) and driver airbag module connector (B).

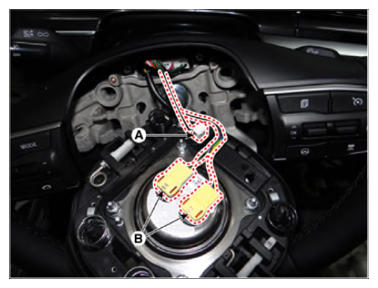

    G13835108Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the steering wheel.

    (Refer to " Removal  ")

  6. Loosen the steering wheel column shroud panel.

    (Refer to " Replacement  " )

  7. Disconnect the clock spring connectors (A).

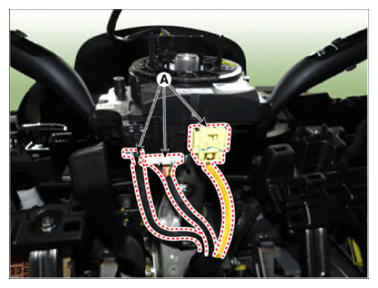

    G13835109Courtesy of KIA MOTORS AMERICA, INC.
