Vehicle S/W Management
WARNING:
This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition
Inspection Procedure
Reference
1. Ignition "ON".
Connect KDS to "Data Link Connector (DLC)".
Perform "Vehicle S/W Management" of concerned component with KDS.

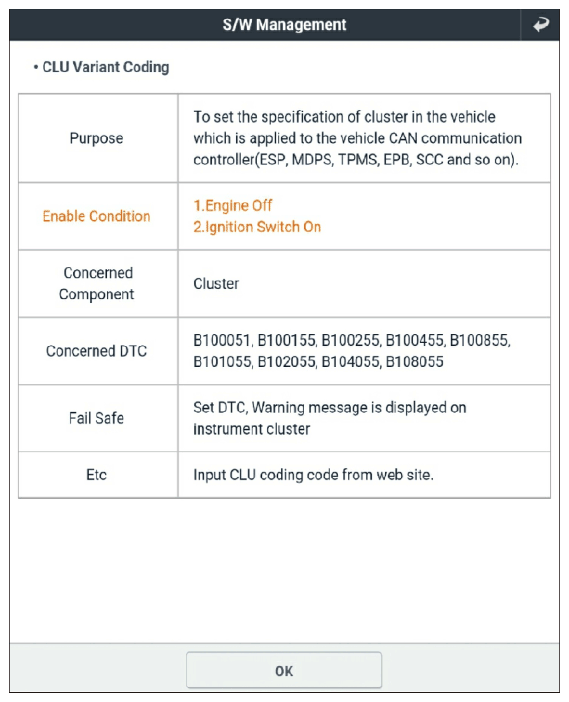

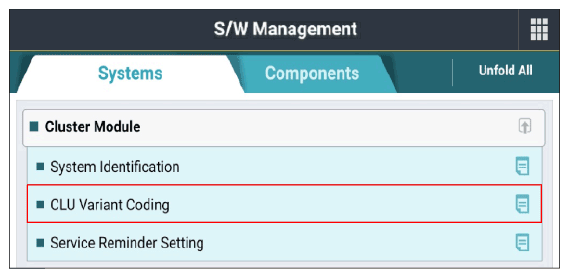

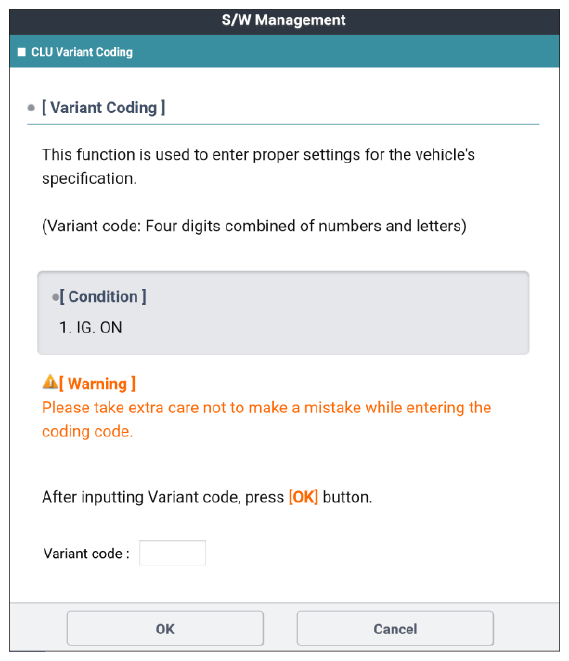

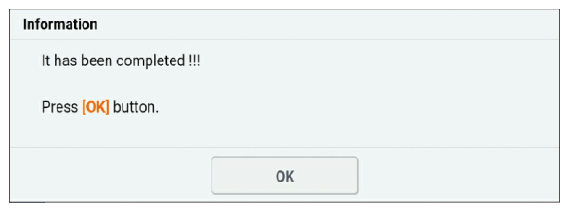

Fig.1 to 5
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
