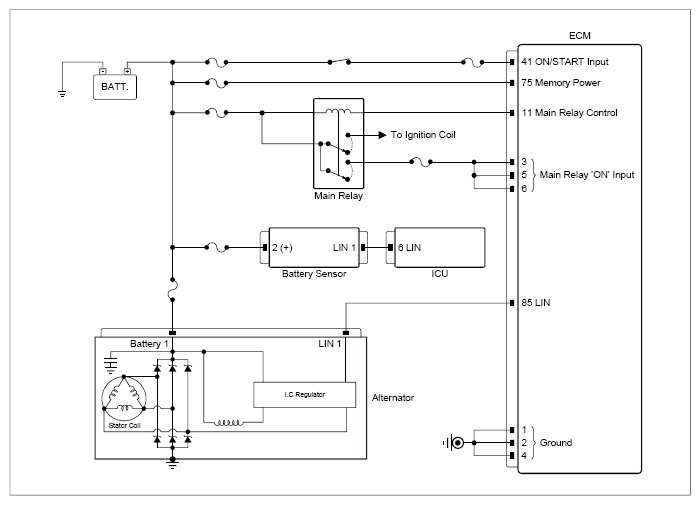

Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Alternator connector | 1 (LIN) | ECM connector | 85 (LIN) | Approx. below 1Ω |
| Alternator connector | 1 (LIN) | Chassis ground | - | ∞ (infinity)Ω | |
Good
- Go to "System Inspection " procedure.
No Good
- Repair or replace as necessary and then, Go to "VERIFICATION OF REPAIR " procedure.
