Repair Procedures: Installation

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

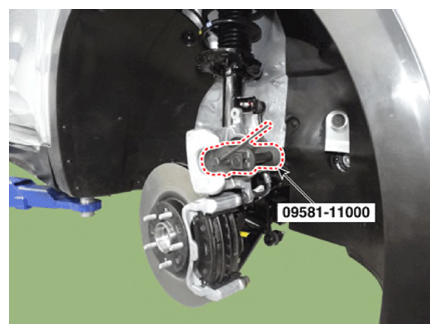

Use a SST (09581-11000) when installing the brake caliper assembly.
NOTE:
- Carefully press it to avoid damaging the piston inlet.
- Make sure not to let the piston interfere when assembling the caliper body to the carrier.
Courtesy of KIA MOTORS AMERICA, INC.
After installation, bleed the brake system.
(Refer to " 1st Air Bleeding (Normal Brake System) ")
Check the brake oil leakage and pedal operating condition.
